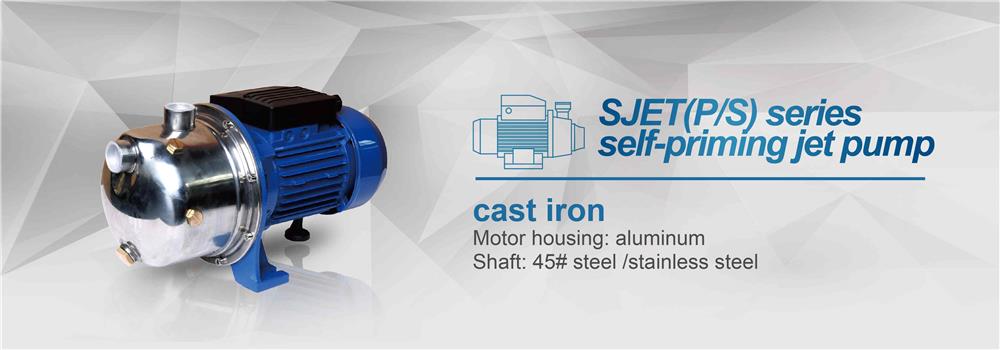

Stream Domestic Self-priming Jet Pumps - SJET (P/S)
Applications and installation:
The SJET(P/S) series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, with stainless steel pump body and spare parts,have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid.They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Pumps should be installed in a covered area, protected against the weather.
- Max ambient temperature up to 40 ?
- Max fluid temperature up to 40 ?
- Max pressure up to 10 bar
- Pump Body: S/S
- Motor Housing: aluminum
- Shaft:45# steel/stainless steel
- Impeller:brass /stainless steel/PPOoptional
- Motor:closed, externally ventilated
- Insulation Class: B/F
- Protection Class: IP44/IP54
- Duty:continuously rated
- Mechanical Seal: ceramic steatite/metalized carbon
