Stream Domestic Circulation Pumps - SXR15/4G

Introduction

The Stream circulation pumps, series SXR, are specifically designed for heathing liquids and is suitable for circulation of hot domestic water and or circulation of liquid in cooling tanks.

Technical Data - Suitable Fluids

  • Suitable for pumping thin, clean, non-aggressive and non-explosive liquids without solid particles or fibers. Water/glycol mixtures max mixing ratio 1:1.

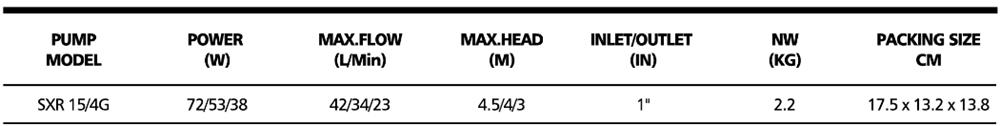

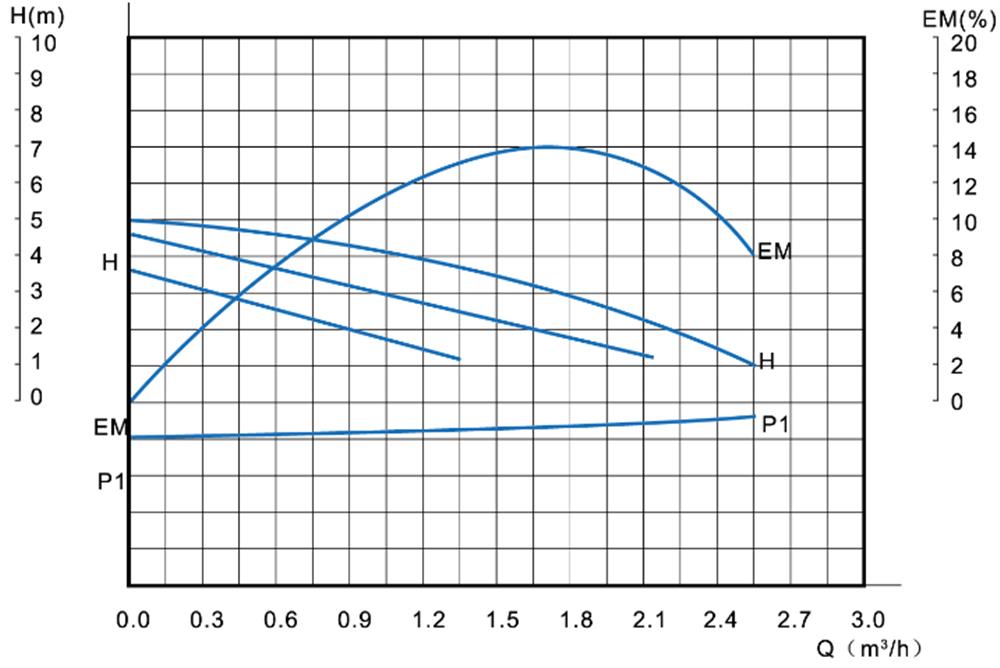

Performance

  • Max ambient temperature up to 40°C
  • Fluids temperature range: -10°C - +110°C
  • Max working pressure: 10bar
  • Mains power: 1-230V, 50Hz
  • Degree of protection: IP44
  • Insulation class: F

Construction Materials

  • Pump body: cast iron
  • Impeller: PP
  • Shaft: Ceramic
  • Bearing: Ceramic

Installation Positions

Pump shaft in the horizontal plane
