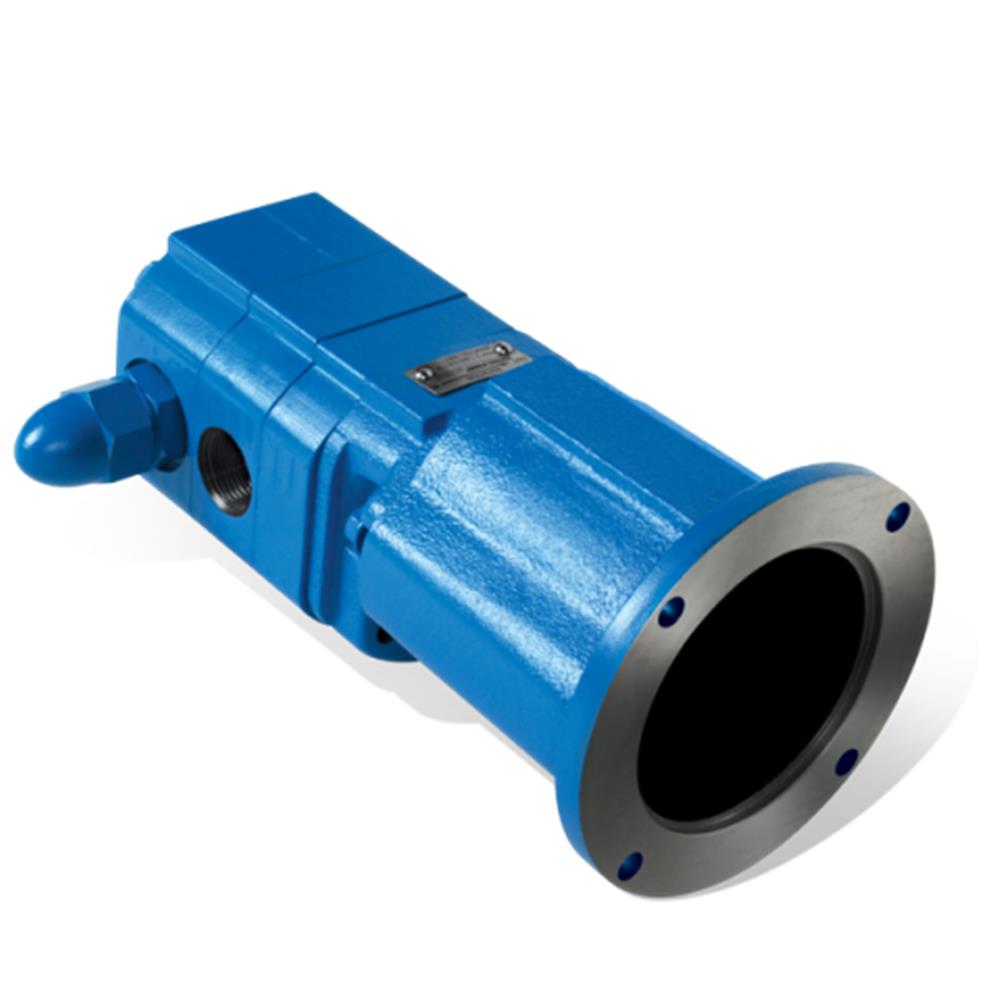

Viking - External Gear Pumps - Mag Drive Spur Gear

Series:

SG-8

Introduction:

Viking's Spur Gear series pumps are ideal for low-capacity, high-pressure, motor-speed applications. All pumps increase by capacities of 40%, so there is always a pump within 20% of your capacity needs.

Features:

Viking Mag Drive® pumps use magnetic force passing through a statically sealed canister to drive the pump. This eliminates the need for a traditional dynamic shaft seal such as packing or mechanical seals. In turn, this eliminates the hazards and mess caused by leaking packing or mechanical seal failure, making this an ideal solution for:

  • Hazardous liquids such as caustics or acids
  • Flammable liquids such as fuels or alcohols
  • Liquids which are difficult to seal such as resins or isocyanates used in polyurethane foam production
  • Strong aromatics such as perfumes or mercaptum
  • Expensive liquids such as heat transfer liquid or those used in pharmaceutical production
  • Applications where seal failure is absolutely unacceptable such as pipeline sampling

Specifications


Size Standard Port Nominal Capacity at Maximum Speed Maximum Speed Maximum Pressure*
Inches m³/hr GPM RPM BAR PSI
0417 0.375 0.01 0.06 1800 34 500
0418 0.375 0.03 0.14 1800 34 500
0425 0.375 0.04 0.18 1800 34 500
0435 0.375 0.06 0.27 1800 34 500
0450 0.375 0.08 0.36 1800 34 500
0470 0.375 0.11 0.50 1800 34 500
0518 0.5 0.16 0.7 1800 34 500
0525 0.5 0.23 1.0 1800 34 500
0535 0.5 0.32 1.4 1800 34 500
0550 0.5 0.45 2.0 1800 34 500
0570 0.5 0.64 2.8 1800 34 500
0510 0.5 0.91 4.0 1800 34 500
0514 0.75 1.3 5.6 1800 34 500
0519 0.75 1.7 7.6 1800 14 200
0528 0.75 2.5 11.2 1800 7 100
0729 1 0.6 2.8 1800 34 500
0741 1 0.91 4.0 1800 34 500
0758 1 1.3 5.6 1800 34 500
0782 1 1.8 8.0 1800 34 500
0711 1 2.5 11.2 1800 34 500
0716 1 3.6 16.0 1800 34 500
0722 1.5 x 1.25 5.0 22.0 1800 34 500
0732 1.5 x 1.25 7.3 32.0 1800 34 500
1009 1.0 3.66 16.0 1800 34 500
1013 1.5 5.7 25.0 1800 34 500
1026 2.0 11.34 50.0 1800 34 500
1420 2.0 15.9 70.0 1800 34 500
1436 3.0 28.38 125.0 1800 20 290
1456 4.0 43.19 190.0 1800 13 190

* Max. Differential Pressure

Higher Pressures available with GP models
