Stream Industrial Split Casing Pumps - SCP

Application

  • Clean water or medium similar to water in phisical and chemical properties:
  • Water supply,drainage, irrigation, power station, construction.
  • Hydropower station,fire-fighting,air-conditioning, building industry.

Abrasive medium:

Sand water, oxide scale water, others.

Corrosive medium:

Desalination,bittern, sea water, others.

High temperature medium:

Heating network circulating water, all kinds of chemical liquid.

Structure design

SCP is single stage, axially split volute casing pump with double suction impeller, for horizontal and vertical installation.

Drive shaft end of the horizontal pump optionally on the left or right side. Flanges drilled to ISO, DIN , BS OR ANSI.

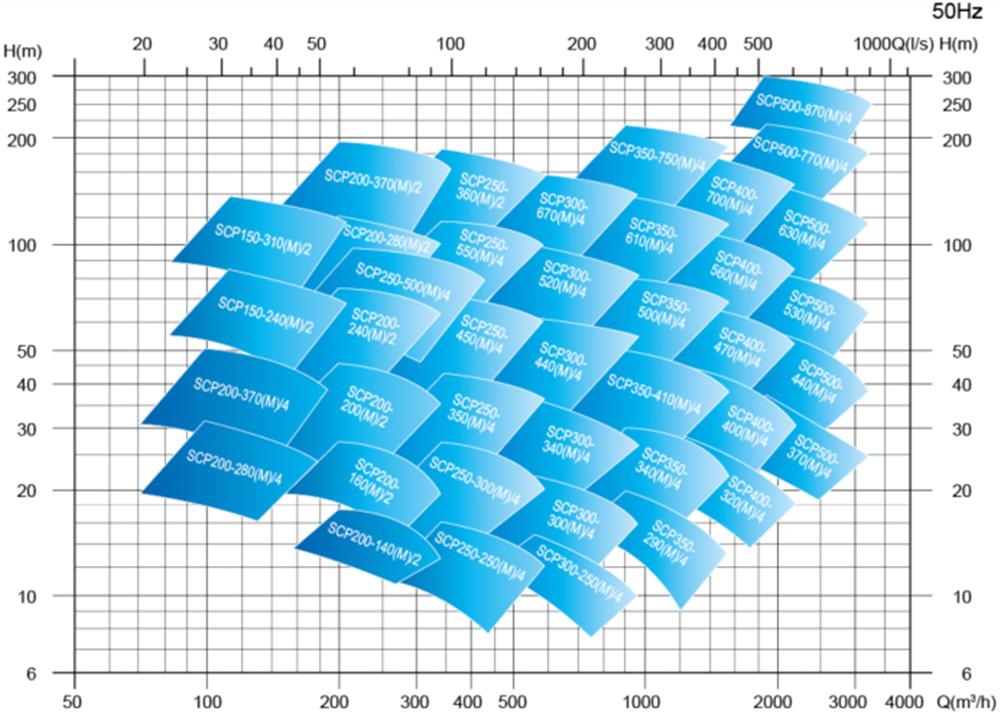

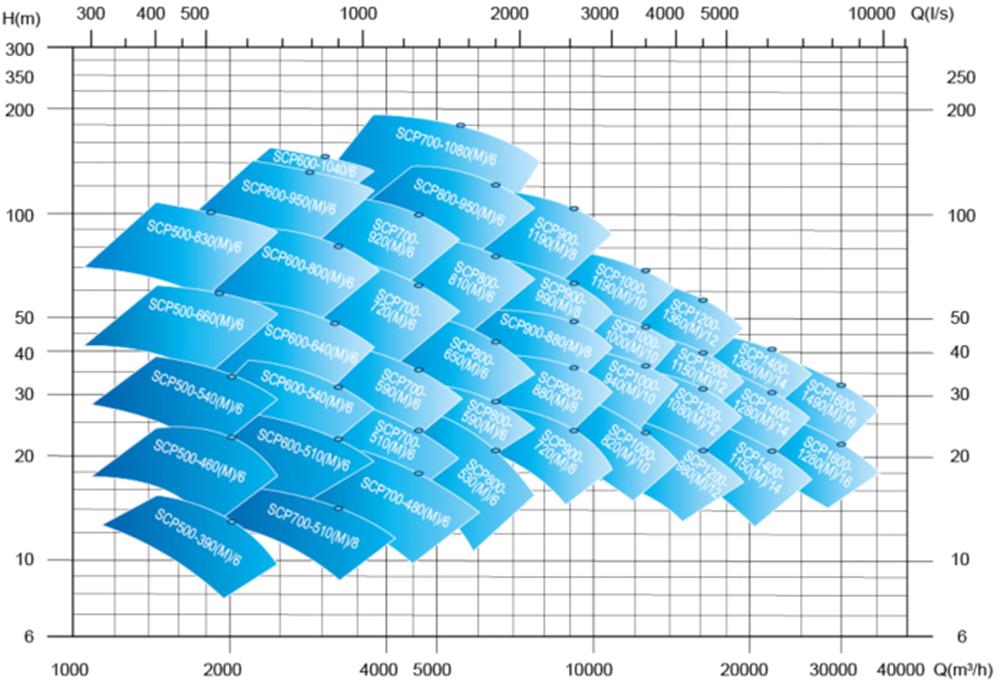

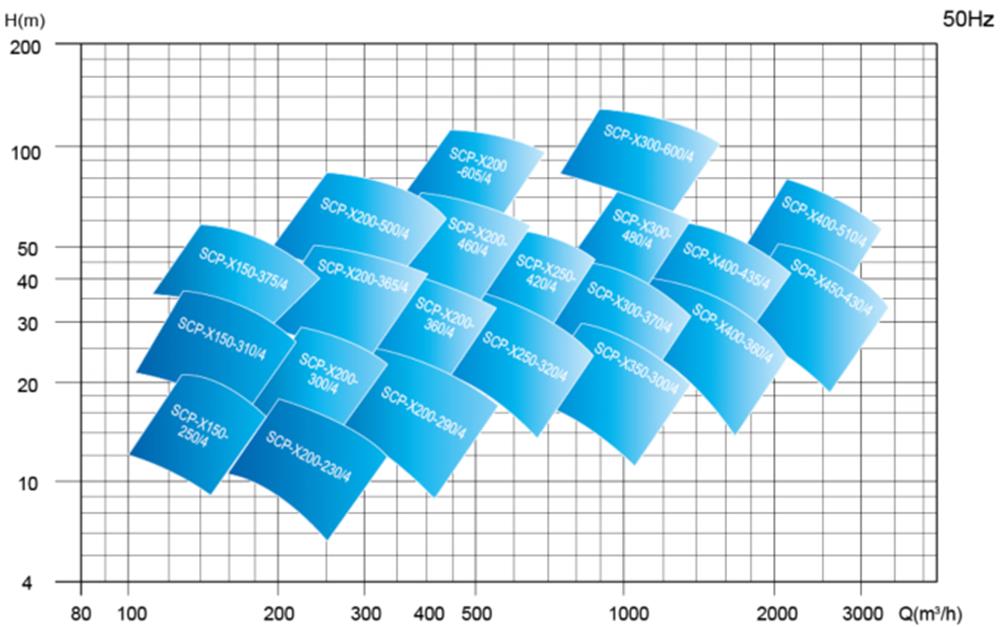

Specifications

CAPACITY(Q):.................................................52- 35000m³/h

HEAD(H):..........................................................10 - 300m

SUCTIONDIAMETER:....................................150 - 1600mm

DISCHARGEDIAMETER:..............................100 - 1400mm

OPERATING PRESSURE(P):.......................≤3.5MPa

OPERATINGTEMPERATURE (t):................-15? - +150? (above 80?, Contact TianjinElecmotor)

ABRASVEMEDIUM:.......................................≤4%
