Stream - Domestic Self-priming Jet Pumps - SNGM32

Applications and installation:

The SNGM32 pumps are with one or two impellers. The two impeller pump can gain bigger flow rate. In fact they consist of two pumps connected in series, one is ejector-pump and the other is centrifugal pump. These pumps are suitable for pumping clean water and chemically non-aggressive fluids. They are extremely reliable, economical non-aggressive fluids. They are extremely reliable,economical and simple to use, finding many uses in domestic applications and the automatic distribution of water from small and medium-sized surge tanks form an automatic booster  systems to supply water. The most remarkable character is that they can be used to supply clean water from extremely deep well. To ensure adequate counter-pressure, it is always to install a foot valve with afilter on the suction opening.

Pumps should be installed in a covered area, protected against the weather.

Operating limitations:

• Max ambient temperature up to 40 ?
• Max fluid temperature up to 80 ?
• Max pressure up to 10 bar

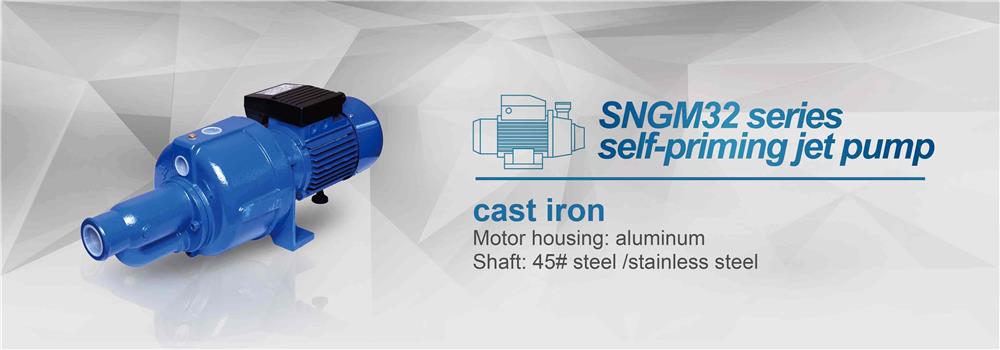

Construction features

• Pump Body: cast iron
• Motor Housing: aluminum
• Shaft:45# steel/stainless steel
• Impeller:brass
• Motor:closed, externally ventilated
• Insulation Class: B/F
• Protection Class: IP44/IP54
• Duty:continuously rated
• Mechanical Seal: ceramic steatite/metalized carbon
