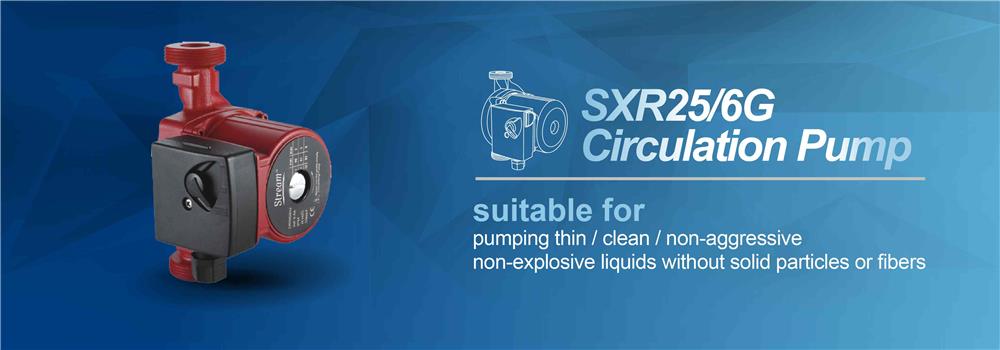

Stream - Domestic Circulation Pumps - SXR25/6G

Technical data - Suitable fluids

  • Heating water to VD12035
  • Suitable for pumping thin,clean,non-aggressive and non-explosive liquids without solid particles or fibers.
  • Water/glycol mixtures max.mixing ratio:  1:1

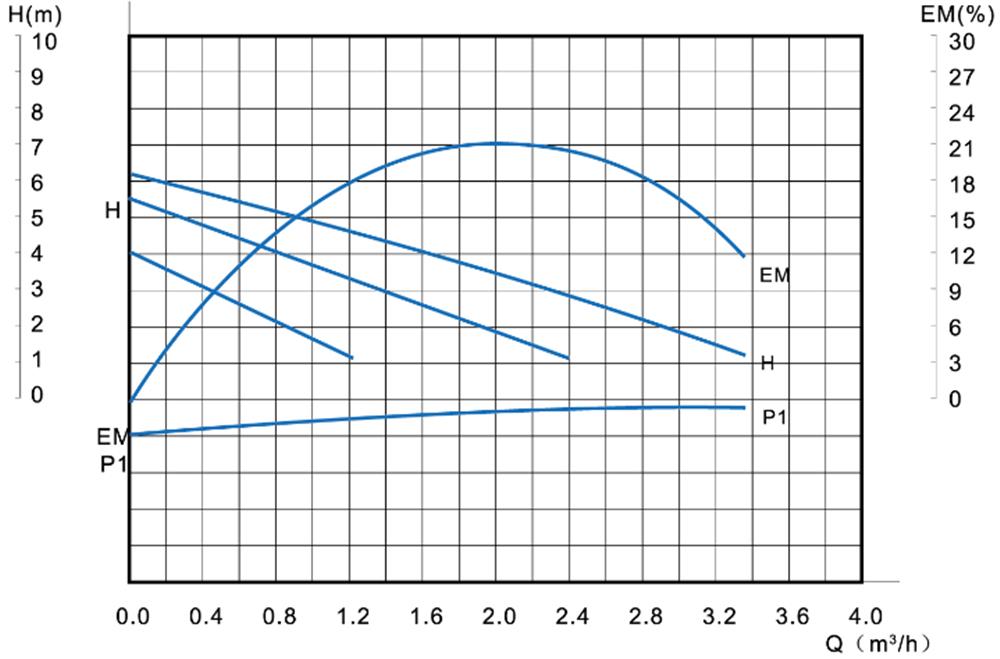

Performance

  • Fluid temperature range  -10?-+110?
  • Max working pressure: 10 bar

Ambient temperature

  • Permissible up to 40?

Power

  • Mains power: 1-230v, 50Hz

Motor

  • Degree of protection: IP44
  • Insulation class: F

Construction materials

  • Pump body: cast iron
  • Impeller: PP
  • Shaft: Ceramic
  • Bearings: Ceramic

Mounting positions

  • Pump shaft in the horizontal plane
