Stream Domestic Centrifugal Pumps - SCP100

Applications and installation:

The SCP series pumps are high-efficient,power-saving and compact in structure,convenient to operate and maintain. The hydraulic characteristic is with high head and small capacity. They are suitable for both domestic and industrial applications to convey clean water and non-aggressive chemical  liquid, also can be applied to supply the water for garden, hotel, villas and agricultural irrigation, etc.

Operating limitations:

  • Max ambient temperature up to 40 ?
  • Max fluid temperature up to 80 ?
  • Max pressure up to 10 bar

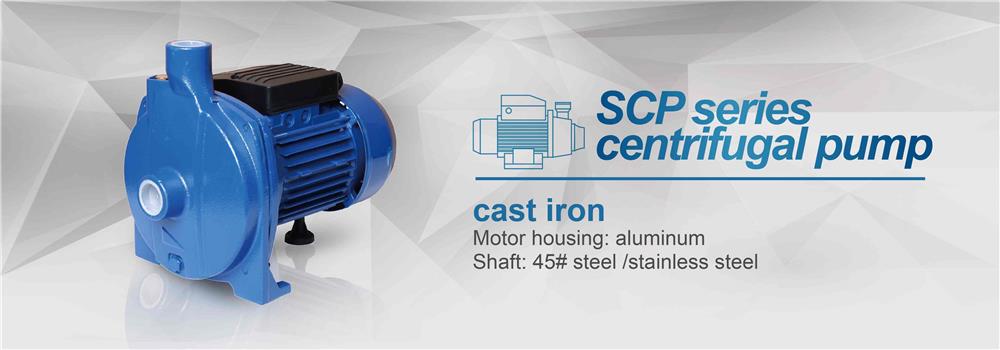

Construction features

  • Pump Body: cast iron
  • Motor Housing: aluminum
  • Shaft:45# steel/stainless steel
  • Impeller:brass /S/S optional
  • Motor:closed, externally ventilated
  • Insulation Class: B/F
  • Protection Class: IP44/IP54
  • Duty:continuously rated
  • Mechanical Seal: ceramic steatite/metalized carbon
