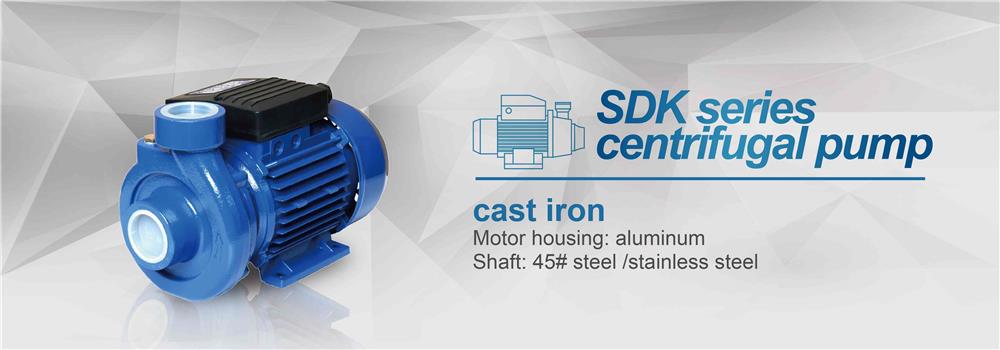

Stream Domestic Centrifugal Pumps - SDK
Applications and installation:
The SDK series pumps are recommended for pumping clean water and chemically non-aggressive liquid. They have compact size and are extremely reliable, very simple to use, efficient and almost maintenance-free. They are suitable for boosting pressure water supplying for household, irrigation, general industrial applications, etc.
Pumps should be installed in a covered area, protected against the weather.
- Operating limitations:
- Max ambient temperature up to 40 ?
- Max fluid temperature up to 80 ?
- Max pressure up to 10bar
- Pump Body: cast iron
- Motor Housing: aluminum
- Shaft:45# steel/stainless steel
- Motor:closed, externally ventilated
- Insulation Class: B/F
- Protection Class: IP44/IP54
- Duty:continuously rated
- Mechanical Seal: ceramic steatite/metalized carbon
