Stream Irrigation Deep Well Pumps - 4SP16

Applications

  • For water supply from wells or reservoirs.
  • For domestic use, for civil and industrial applications.
  • For garden use and irrigation.

Operating conditions

  • Maximum fluid temperature up to +50°C.
  • Maximum sand content: 0.25%.
  • Maximum immersion: 80m.
  • Minimum well diameter: 3”,3.5”,4”

Motor and Pump

  • Rewindable motor or Full obturated screen motor
  • Three-phase: 380v-415v/50Hz
  • Single- phase: 220v-240v/50Hz
  • Equip with start control box or digital auto-control box

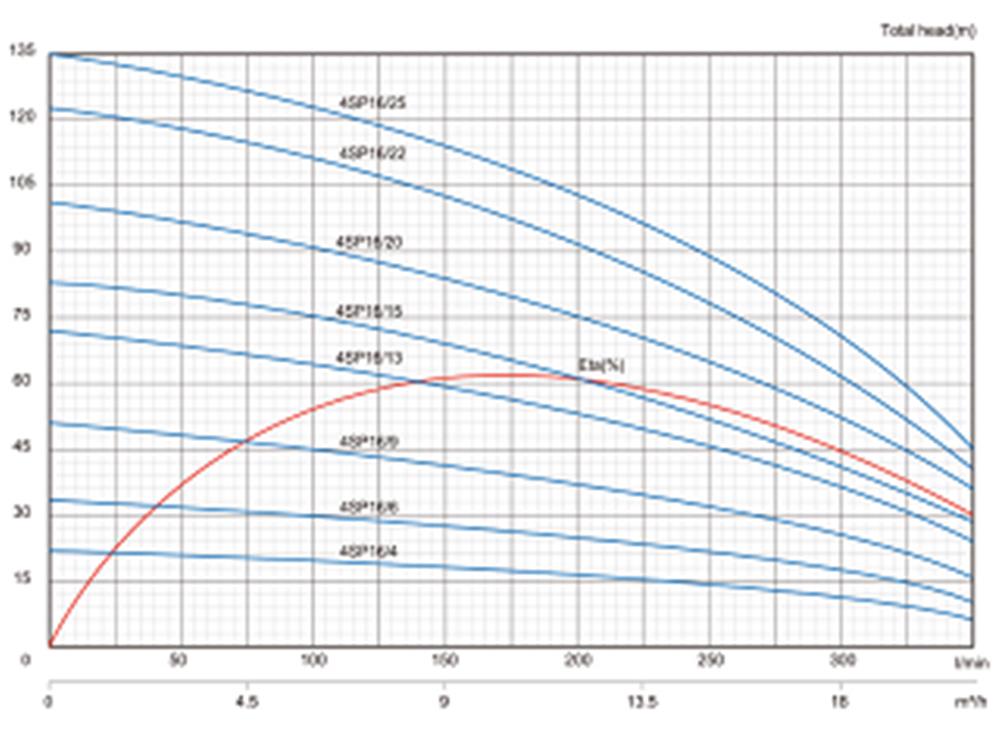

  • Curve tolerance according to ISO 9906

Options on request

  • Special mechanical seal
  • Other voltages or frequency 60 Hz
  • Single phase motor with built-in capacitor

Advantages

  1. Italian technology is used for pump production.
  2. Slight motor heating, overload protection.
  3. High efficiency.
  4. Proper way of stainless steel treatment; pumps are environment friendly.
  5. Motor oil and seal lubricant oil is the oil for the food industry.
  6. Sand resistance.
  7. Assembling accuracy.
  8. Low energy consumption.
  9. Long lifetime.
