Stream - Industrial Submersible Motor - S95

Technical Data - Motor

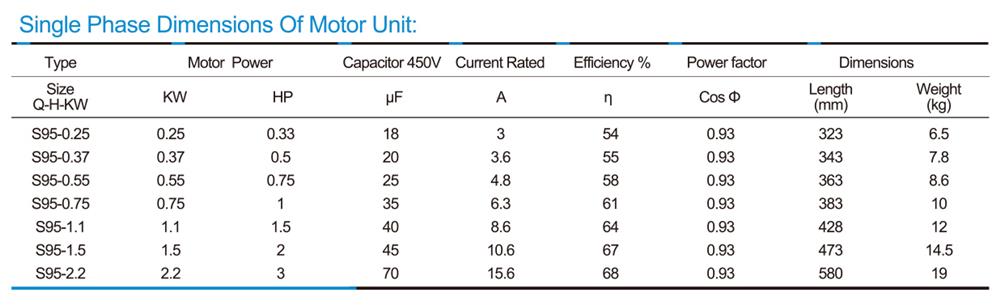

  • Single phase power: 0.25 to 2.2 kw
  • Speed: 2850rpm
  • Voltage: 220v-240v~/50Hz
  • Insulation class: B
  • Protection grade: IP 68
  • Highest temperature of liquid: 35?
  • Maximum content of solid substance: 40gr/m3
  • Flange and coupling according to NEMA standard
  • Motor casting: stainless steel

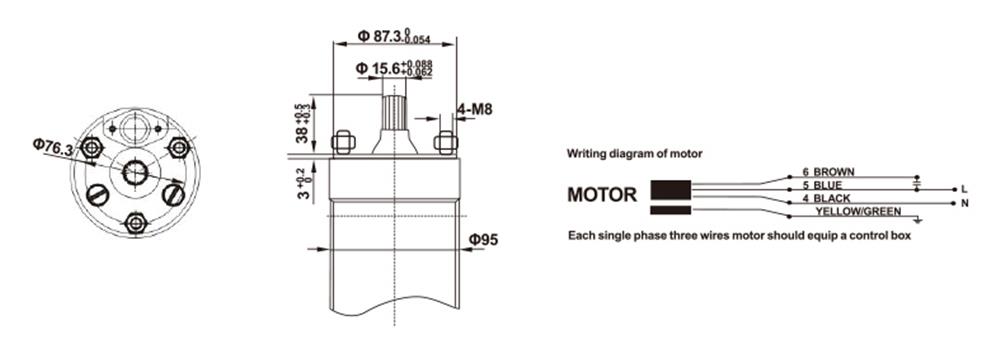

  • Maximum diameter: 95mm
  • With soundproof cover/pressure balance
  • Membrane/mechanical seal with high performance
