Viking External Gear Pumps - LACT Booster

Series:

GP407, GP410, GP414

Max. Capacity: 210 GPM (7,200 BPD)
Max. Pressure: 1000 PSI
Max. Viscosity: 2500 SSU
Temperature Range: Temperature Range:

Features:

Back Pull-Out Mechanical Seal

  • Single mechanical seal, accessible via shaft end for ease of maintenance; standard Viking units with spacer coupling allow seal change without moving pump or motor

Hardened Internal Parts

  • Heat treated shaft and spur-type gears minimize wear while increasing service life of pump, which extends pressure capability while minimizing wear for longer pump life
  • Internal parts heat treated for hardness to extend the life of the pump and create a hardened barrier on wear points

No Ball or Roller Element Bearings

  • Heavy duty bushings to support shaft on either side of the gears to eliminate ‘overhung load’ and durable in non- lubrication applications with no outboard bearings to service

SAE Ports for Modularity

  • Designed with modularity in mind, the Viking Booster pump uses SAE J518 Code 61 ports to allow flexibility in porting options with bolt on ANSI flanges to meet the customer requirements

Ductile Iron Externals and Controlled Clearances

  • Complete externals in Ductile Iron for oil field applications and precision machined casings / gear sets to maximize pumping efficiencies and allow for high discharge pressures

Specifications


LACT Booster Pumps Ports* Nominal Flow @ No Pressure (1,750 rpm) Nominal Flow @ Max Pressure (1,750 rpm) on 4 cPs Viscosity Max Continuous Pressure (1,750 rpm) on 4 cPs Viscosity Max Recommended Temperature Approximate Shipping Weight (Pump Only)
Ductile Iron Inch GPM GPM BPD PSI Deg. F Lbs.
GP-41013 2" SAE 25 20 690 1000 350 61
GP-41026 2" SAE 50 40 1380 1000 350 85
GP-41415 2" SAE 55 35 1200 1000 350 163
GP-41420 2" SAE 75 50 1725 750 350 171
GP-41430 2" SAE 115 80 2760 1000 350 272
GP-41440 3" SAE 145 110 3795 750 350 284
GP-41455 3" SAE 200 165 5690 600 350 403
GP-41460 4" SAE 215 180 6200 600 350 448

*2" & 3" SAE Ports use J518 Code 61 SAE Flange Ports.

*4" SAE Port uses 3000 Series Square Flange.

Options

Sealing / Coupling:

  • Type 1 mechanical seal as standard
  • Balanced mechanical seal as option

Mounting:

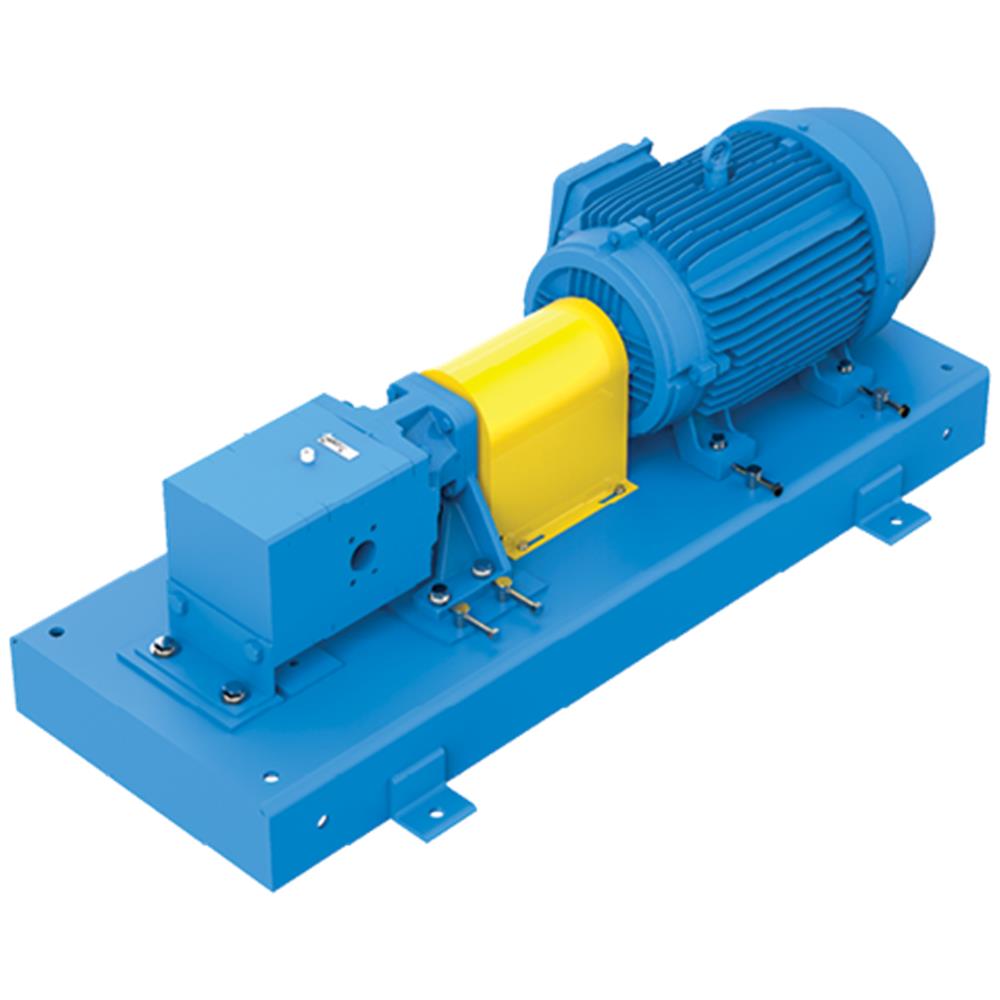

  • Foot Mount (*Available as pump only or as complete unit with base, coupling, guards, and motor as a turnkey package)
