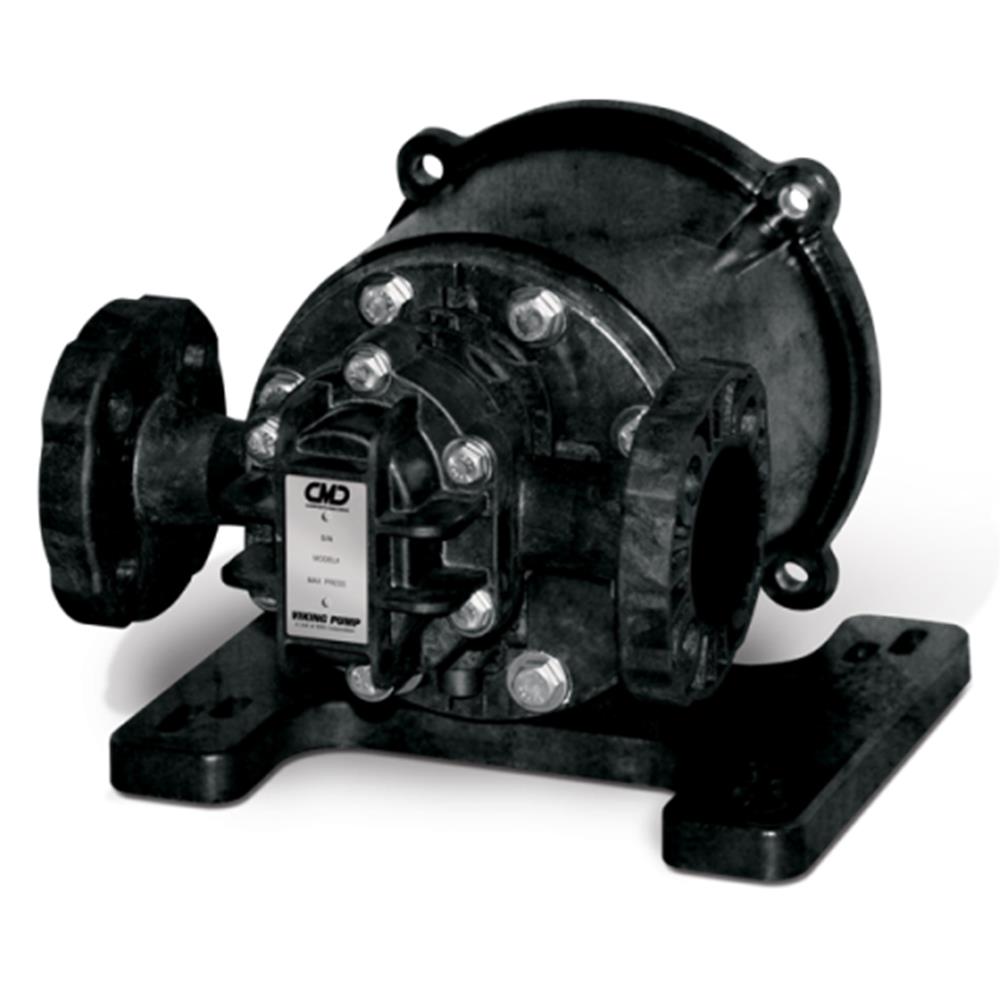

Viking - External Gear Pumps - Composite Mag Drive

Series:

Composite Mag Drive: CMD

Max. Capacity: 27 GPM (6 M³/hr)
Max. Pressure: 150 PSI (10.34 BAR)
Max. Viscosity: 25,000 SSU (5,500 cSt)
Temperature Range: -40°F to +200°F (-40°C to +95°C)

Features:

  • Inert composite materials for universal chemical compatibility
  • Compact design
  • Sealless Mag Drive (CMD)
  • Entirely non-metallic (CMD)
  • High repeatability for chemical metering

Specifications


  Size Standard Port Nominal Capacity At 1450 RPM Nominal Capacity At 1750 RPM Pressure
Inches GPM LPM GPM LPM PSI BAR
CMD 2 0.25 0.34 1.3 0.4 1.5 150 10
5 0.375 1.3 4.9 1.5 5.8 150 10
12 0.75 2.6 10 3.2 12.1 150 10
25 1 5.5 21 6.5 24.6 150 10
75 1.5 16.5 62.5 20 75 150 10
125 1.5 27 104 33 125 150 10

Inline valve sold separately.

Options

Sealing / Coupling:
Sealless Mag Drive

Porting:
Opposite (180°), NPT/BSP, Flanged (ANSI or DIN)

Mounting:
Motor Mount, Foot Mount
