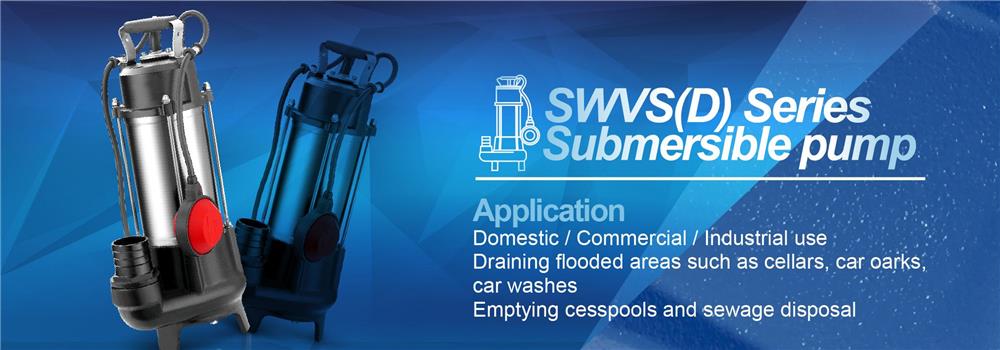

Stream - Industrial Submersible Pumps - SWVS

Application

  • Domestic/ Commercial /Industrial use
  • Draining flooded areas such as cellars,car oarks, car washes
  • Emptying cesspools and sewage disposal

Operating Conditions

  • Submersible depth:5m
  • Liquid temperature up to+40°C
  • Ambient temperature up to+40°C
  • Max working pressure: 6 bar
  • Passage of suspended solid up to 45mm

Motor

  • 2-pole induction motor
  • Insulation:Class B
  • Protection:IP 68
  • Single-phase with capacitor and thermal overload protection
  • Three-phase from with thermal overload protection

Material

  • Pump body: Cast iron
  • Motor bracket: Stainless steel
  • Impeller: Cast iron
  • Motor shaft:SS316 with CS45#
  • Mechanical seal:Ceramic-Graphite,Silicon Carbide-Carbide alloy
  • Copper winding
