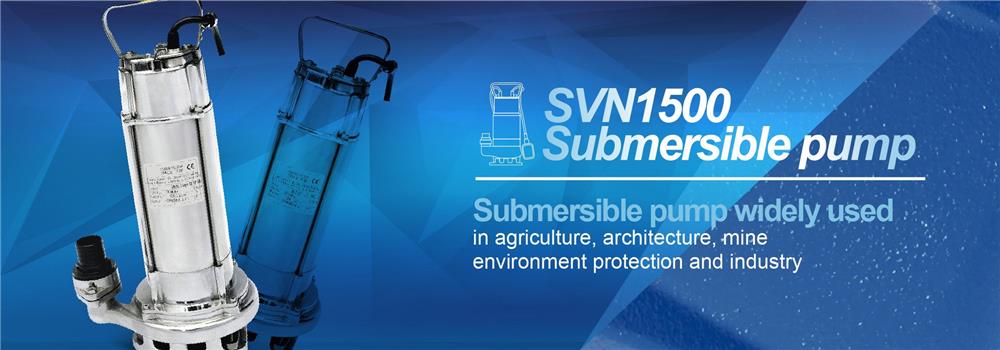

Stream - Industrial Submersible Pumps - SVN1500


The adoption of bottom suction structure and the unique flow passage design provide it with wide efficient area of the heads and downright drainage, suitable for the transportation of mine enterprises,construction sites breed aquatics industry,fluid drug, durink,milk products,seawater.

Working Condition:

  • The maximum depth allowed in water is 5m from its center of impeller;
  • The temperature of trans medium's shouldn't be higher than 40°C;
  • The trans medium's PH scope is 4~10;
  • The kinematics viscosity of the trans medium is 7*10-7~23*10-6m2/s
  • The maximum density of the trans medium is 1.2*103kg/m3.
