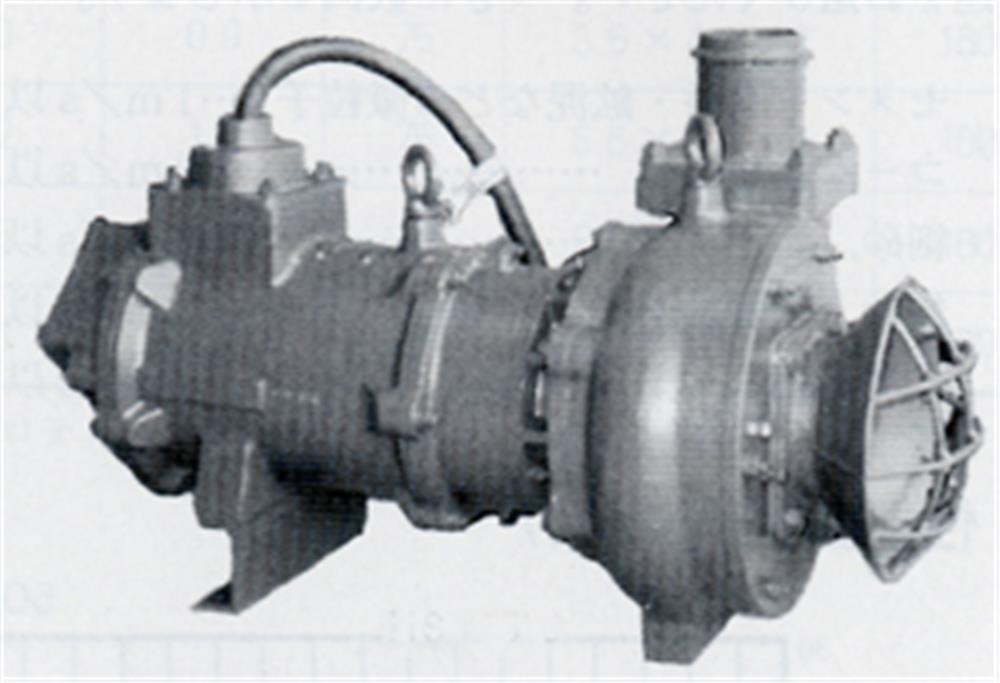

EIM - General Purpose Submersible Pumps - Model HS: Heavy Duty Type (Horizontal Type for Sand)
A mighty pump owing to its non-clogging high-chrome cast iron impeller, available for operation in very low water level
Features:
- Has horizontal shaft and impeller arrangement running in lower water level allowing.
- High-chrome cast iron impeller in which wide waterways are arranged, brings about high performance for long-term and minimum maintenance cost.
- Motor protector built-in.
Specifications
|
Model
|
Discharge
|
No. of Poles
|
Motor Output
|
Rated Head
|
Rated Flow
|
Power Cable
|
Weight
|
||||
|
mm
|
inch
|
kW
|
HP
|
m
|
ft
|
m3/min
|
l/s
|
mm2×Core×Length(m)
|
kg
|
||
|
HS-1515E
|
100/150*
|
4/6*
|
4
|
11
|
15
|
12
|
39
|
3.0
|
50.0
|
14×4×10
|
375
|
|
HS-1530E
|
150
|
6
|
4
|
22
|
30
|
18
|
59
|
4.0
|
66.7
|
22×4×10
|
490
|
- A motor protector (bimettalic auto cut) is installed for motors.
- Mark * shows availability of discharge sizes, on request.
- Power cable : 3CT
