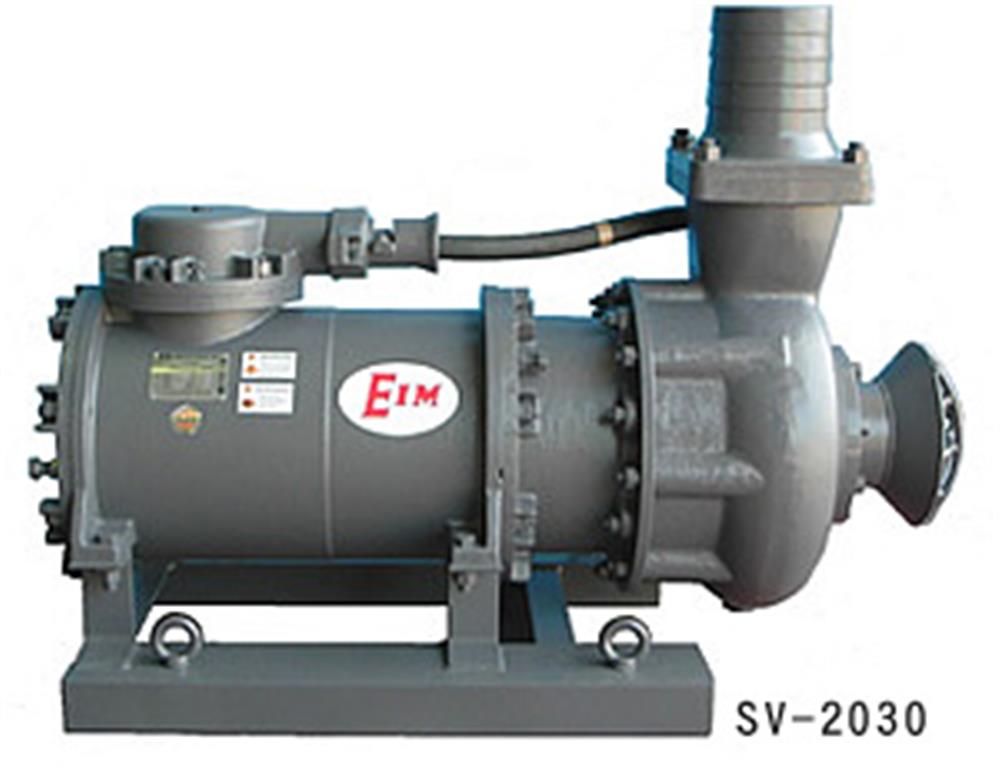

EIM - General Purpose Submersible Pumps - Model SV: General Purpose (Horizontal Type for Sand)
Optimum use for sand pump which provides wider passage space for large solid handling
Features:
- Powerful in disposing of slurry, sludge, sandy or muddy water of mine and construction sites.
- Used for disposal of wastewater containing scales or sludges found in various process industries.
Specifications
|
Model
|
Discharge
|
No. of Poles
|
Motor Output
|
Rated Head
|
Rated Flow
|
Solid Handing
|
Power Cable
|
Weight
|
||||
|
mm
|
inch
|
kW
|
HP
|
m
|
ft
|
m3/min
|
l/s
|
mm
|
mm2×Core×Length(m)
|
kg
|
||
|
SV-108E
|
100
|
4
|
4
|
5.5
|
8
|
10
|
33
|
0.9
|
15.0
|
75
|
3.5×4×10
|
160
|
|
SV-1010E
|
4
|
7.5
|
10
|
12
|
39
|
1.2
|
20.0
|
75
|
5.5×4×10
|
160
|
||
|
SV-1015E
|
100/150*
|
4/6*
|
4
|
11
|
15
|
15
|
49
|
1.25
|
75
|
14×4×10
|
180
|
|
|
SV-1030E
|
4
|
22
|
30
|
20
|
66
|
2.0
|
33.3
|
75
|
22×4×10
|
330
|
||
- A motor protector (bimettalic auto cut) is installed for motors under 11kW.
- Mark * shows availability of discharge sizes, on request.
- Power cable : 3CT
