EIM - Submersible Pumps for Sumps - Model SE: 2-pole Series (For Sewage and Wastewater)

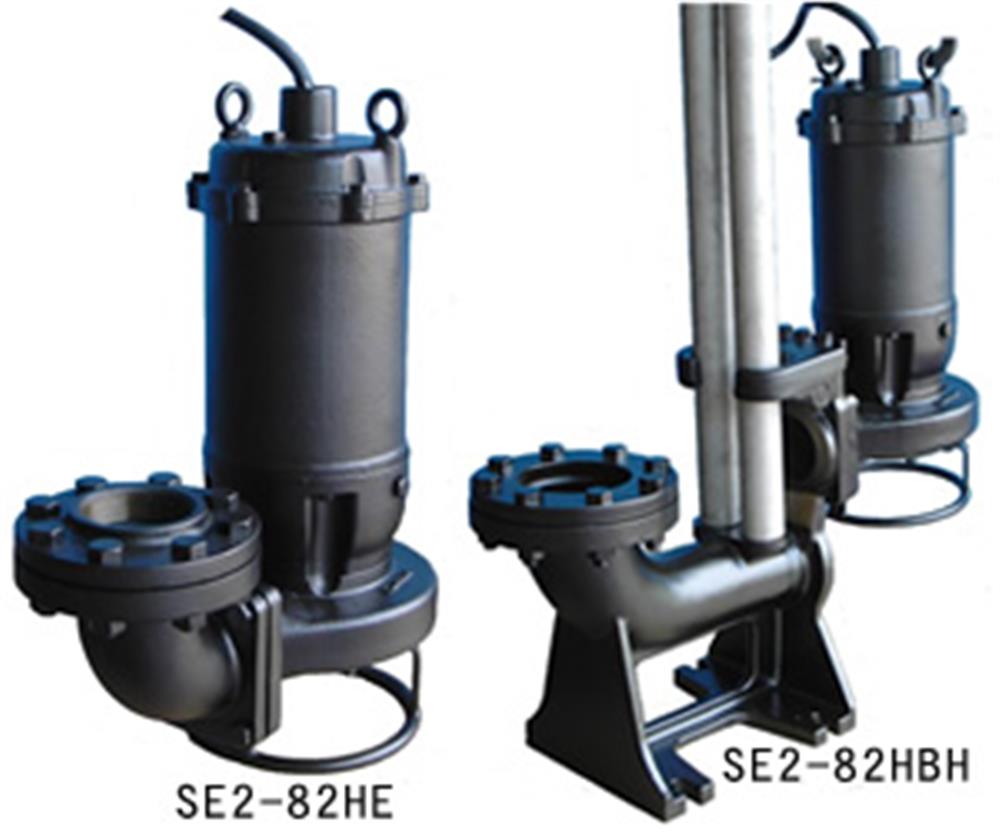

Model SE For Waste Water Effluent, Small Lightweight Type
Optimum use in general applications and miscellaneous waste water
Features:
- Free from clogging by sewage and dust due to its non-clog impeller
- Elbow assembly can also be mounted.
- Auto-level control contained type also available.(3.7kW and smaller)
Specifications
|
Model
|
Discharge
|
No. of Poles
|
Motor Output
|
Rated Head
|
Rated Flow
|
Solid Handing
|
Power Cable
|
Weight
|
|||||
|
Free Standing
|
Ebow Assembly
|
mm
|
inch
|
kW
|
HP
|
m
|
ft
|
m3/min
|
l/s
|
mm
|
mm2×Core×Length(m)
|
kg
|
|
|
SE-400E
|
SE-400B1
|
50/65*
|
2
|
2
|
0.4
|
1/2
|
6
|
20
|
0.16
|
2.7
|
12
|
1.25×3×6
|
23
|
|
SE-400G
|
16
|
||||||||||||
|
SE-503E
|
SE-503B1
|
2
|
0.25
|
1/3
|
5
|
16
|
0.15
|
2.5
|
12
|
1.25×4×6
|
23
|
||
|
SE-503G
|
16
|
||||||||||||
|
SE-505E
|
SE-505B1
|
50/65*
|
2
|
2
|
0.4
|
1/2
|
6
|
20
|
0.2
|
3.3
|
12
|
1.25×4×10
|
24
|
|
SE-505G
|
17
|
||||||||||||
|
SE-51E
|
SE-51B1
|
2
|
0.75
|
1
|
8
|
26
|
0.3
|
5.0
|
16
|
1.25×4×10
|
25
|
||
|
SE-51G
|
17
|
||||||||||||
|
SE5-82HE
|
SE5-82HBH
|
2
|
1.5
|
2
|
15
|
49
|
0.25
|
4.2
|
13
|
2.0×4×8
|
53
|
||
|
SE5-82LE
|
SE5-82LBH
|
8
|
26
|
0.5(0.55)
|
8.3(9.2)
|
16
|
53
|
||||||
|
SE5-83HE
|
SE5-83HBH
|
80/65*
|
3
|
2
|
2.2
|
3
|
20
|
66
|
0.25
|
4.2
|
15
|
2.0×4×8
|
58
|
|
SE5-83LE
|
SE5-83LBH
|
8
|
26
|
0.75(0.8)
|
12.5(13.0)
|
34
|
58
|
||||||
|
SE5-85HE
|
SE5-85HBH
|
2
|
3.7
|
5
|
20
|
66
|
0.5
|
8.3
|
18
|
2.0×4×8
|
70
|
||
|
SE5-85LE
|
SE5-85LBH
|
10
|
33
|
1.0(1.1)
|
16.7(18.0)
|
32
|
70
|
||||||
|
SE5-88E
|
SE5-88BH
|
2
|
5.5
|
8
|
30
|
98
|
0.3
|
5.0
|
19
|
3.5×4×8
|
105
|
||
|
SE5-810E
|
SE5-810BH
|
80/65*
|
3
|
2
|
7.5
|
10
|
35
|
115
|
0.4
|
6.7
|
20
|
5.5×4×8
|
125
|
|
SE5-815ED
|
SE5-815DBH
|
2
|
11
|
15
|
40
|
131
|
0.5
|
8.3
|
20
|
5.5×3,4×8
|
140
|
||
|
SE5-108E
|
SE5-108E
|
2
|
5.5
|
8
|
12
|
39
|
1.3
|
21.7
|
33
|
3.5×4×8
|
115
|
||
|
SE5-1010E
|
SE5-1010E
|
100
|
4
|
2
|
7.5
|
10
|
15
|
49
|
1.5
|
25.0
|
33
|
5.5×4×8
|
135
|
|
SE5-1015ED
|
SE5-1015ED
|
2
|
11
|
15
|
15
|
49
|
1.8
|
30.0
|
36
|
5.5×3,4×8
|
150
|
||
- Power Supply : Voltage between 200V to 550V, 3-Phase, 50Hz or 60Hz. (SE-400 only: 1-Phase, 100V to 240V, 50Hz or 60Hz.)
- Starting Method : Direct-on-Line Start
- A motor protector (bimettalic auto cut) is installed for motors under 7.5kW.
- Figures in ( ) of column "Rated Flow" : for 50Hz operation.
- Mark * shows availability of discharge sizes, on request.
- Weight indicates the values of free-standing type.
- Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
