EIM - Submersible Pumps for Sumps - Model CSU: 4-pole Series (For Corrosion-Resistant Stainless Steel Type)
Optimum use for corrosion-resistance in applications requiring stainless steel parts
Features:
- All parts that come in contact with liquids are mode of stainless steel (SUS316) and casting (SCS14).
- Corrosion-resistant mechanical seal.
- Built-in motor protector.
Specifications
|
Model
|
Discharge
|
No. of Poles
|
Motor Output
|
Rated Head
|
Rated Flow
|
Solid Handing
|
Power Cable
|
Weight
|
|||||
|
Free Standing
|
Ebow Assembly
|
mm
|
inch
|
kW
|
HP
|
m
|
ft
|
m3/min
|
l/s
|
mm
|
mm2×Core×Length(m)
|
kg
|
|
|
CSU-51E
|
CSU-51B1
|
50
|
2
|
4
|
0.75
|
1
|
8
|
26
|
0.21
|
3.5
|
20
|
1.25×4×6
|
42
|
|
CSU5-82E
|
CSU5-82B
|
80
|
3
|
4
|
1.5
|
2
|
8
|
26
|
0.55
|
9.2
|
20
|
2.0×4×8
|
77
|
|
CSU5-83E
|
CSU5-83B
|
4
|
2.2
|
3
|
10
|
33
|
0.6
|
10.0
|
22
|
2.0×4×8
|
92
|
||
|
CSU5-85E
|
CSU5-85B
|
4
|
3.7
|
5
|
10
|
33
|
1.0
|
16.7
|
29
|
2.0×4×8
|
104
|
||
|
CSU5-108E
|
CSU5-108B
|
100
|
4
|
4
|
5.5
|
8
|
10
|
33
|
1.5
|
25.0
|
34
|
3.5×4×8
|
130
|
|
CSU5-1010E
|
CSU5-1010B
|
4
|
7.5
|
10
|
15
|
49
|
1.5
|
25.0
|
34
|
5.5×4×8
|
155
|
||
|
CSU5-1510E
|
CSU5-1510B
|
150
|
6
|
4
|
7.5
|
10
|
10
|
33
|
2.5
|
60
|
5.5×4×8
|
165
|
|
|

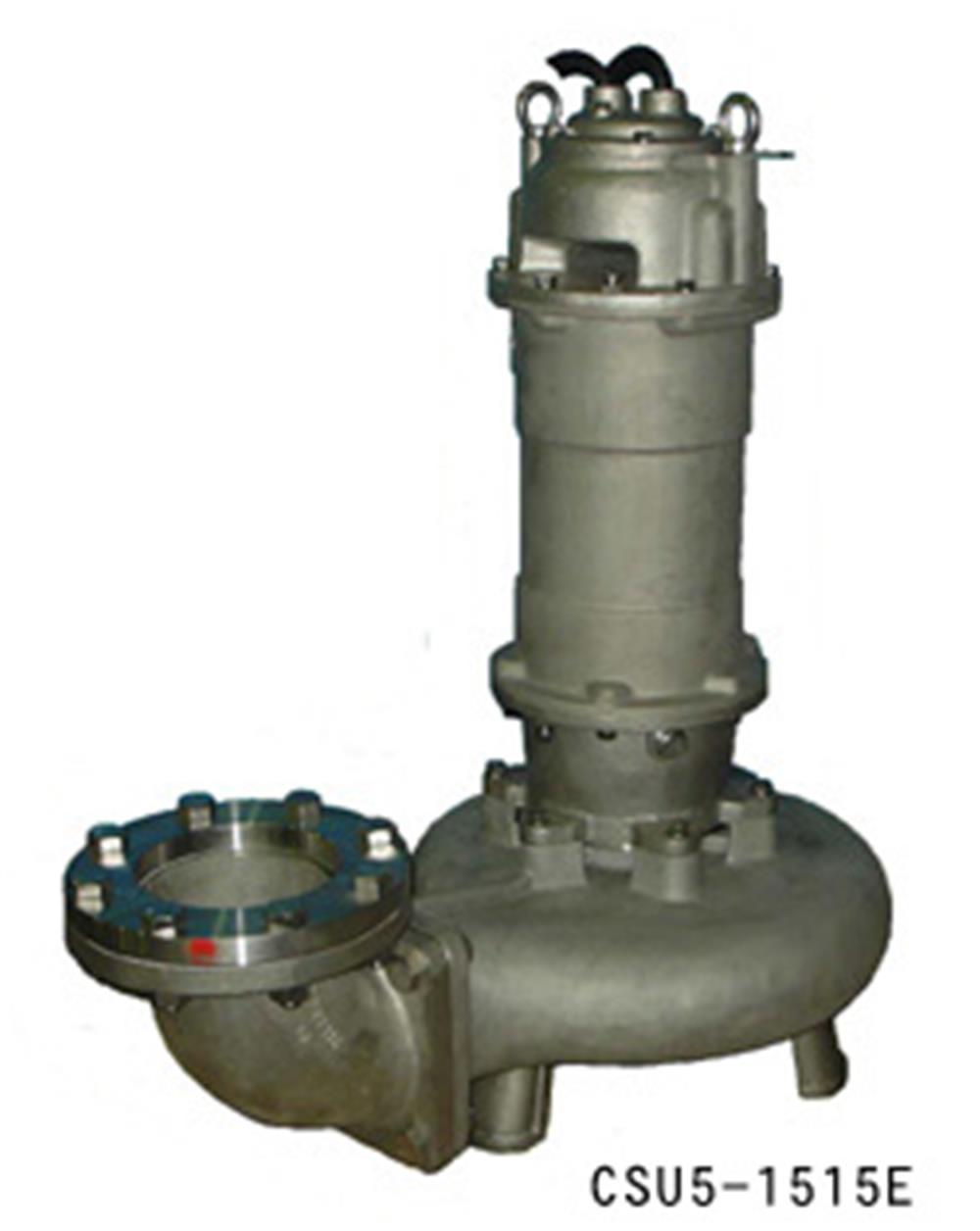

CSU5-1515ED
|
CSU5-1515DB
|
4
|
11
|
15
|
15
|
49
|
2.5
|
44
|
5.5×3,4×8
|
195
|
|||
- A motor protector (bimettalic auto cut) is installed for motors under 7.5kW.
- EIM can provide a water penetration detector (above 5.5kW) on request.
- Weight indicates the values of free-standing type.
- Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
