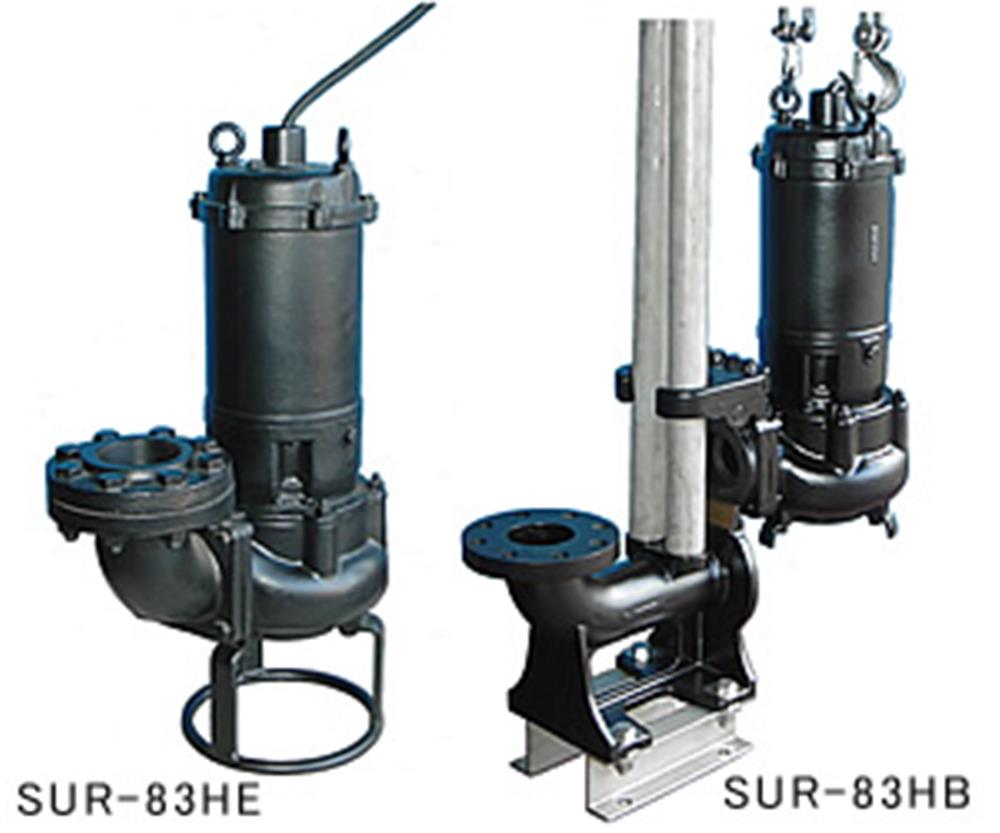

EIM - Submersible Pumps for Sumps - Model SER/SUR: Vortex Type, 4-pole Series (For Solid Sewage)
Optimum use for septic tanks, sludge and stock farming
Features:
- Even large solid and string matters can be pumped up smoothly due to its specially shaped impeller.
- Elbow assembly can also be mounted.
- Auto-level control contained type also available.(3.7kW and smaller)
Specifications
|
Model
|
Discharge
|
No. of Poles
|
Motor Output
|
Rated Head
|
Rated Flow
|
Solid Handing
|
Power Cable
|
Weight
|
|||||
|
Free Standing
|
Ebow Assembly
|
mm
|
inch
|
kW
|
HP
|
m
|
ft
|
m3/min
|
l/s
|
mm
|
mm2×Core×Length(m)
|
kg
|
|
|
SUR-505HE
|
SUR-505HB1
|
50/65*
|
2
|
4
|
0.4
|
1/2
|
4
|
13
|
0.12
|
2.0
|
50
|
1.25×4×8
|
26
|
|
SUR-505LE
|
SUR-505LB1
|
2.5
|
0.22
|
||||||||||
|
SUR-51HE
|
SUR-51HB1
|
4
|
0.75
|
1
|
6
|
20
|
0.15(0.2)
|
2.5(3.3)
|
50
|
1.25×4×8
|
31
|
||
|
SUR-51ME
|
SUR-51MB1
|
4
|
13
|
0.3
|
5.0
|
||||||||
|
SUR-51LE
|
SUR-51LB1
|
2
|
0.35(0.4)
|
5.8(6.7)
|
|||||||||
|
SUR5-82HE
|
SUR5-82HB
|
80/65*
|
3
|
4
|
1.5
|
2
|
7.5
|
25
|
0.2
|
3.3
|
65
|
2.0×4×8
|
66
|
|
SUR5-82ME
|
SUR5-82MB
|
5.5
|
0.32(0.35)
|
||||||||||
|
SUR5-82LE
|
SUR5-82LB
|
3
|
0.5
|
8.3
|
|||||||||
|
SUR5-83HE
|
SUR5-83HB
|
4
|
2.2
|
3
|
9
|
0.2
|
3.3
|
65
|
2.0×4×8
|
70
|
|||
|
SUR5-83ME
|
SUR5-83MB
|
7
|
23
|
0.45
|
|||||||||
|
SUR5-83LE
|
SUR5-83LB
|
4
|
13
|
0.75
|
12.5
|
||||||||
|
SUR5-85HE
|
SUR5-85HB
|
4
|
3.7
|
5
|
14
|
46
|
0.2
|
3.3
|
65
|
2.0×4×8
|
70
|
||
|
SUR5-85ME
|
SUR5-85MB
|
9
|
0.6
|
10.0
|
|||||||||
|
SUR5-85LE
|
SUR5-85LB
|
5
|
16
|
1.0
|
16.7
|
||||||||
|
SER5-108E
|
SER5-108B
|
100
|
4
|
4
|
5.5
|
8
|
8
|
26
|
1.0
|
16.7
|
75
|
3.5×4×8
|
120
|
|
SER5-1010E
|
SER5-1010B
|
4
|
7.5
|
10
|
12
|
39
|
1.0
|
16.7
|
75
|
5.5×4×8
|
140
|
||
|
SER5-1015ED
|
SER5-1015DB
|
4
|
11
|
15
|
15
|
49
|
1.5
|
25.0
|
75
|
5.5×3,4×8
|
180
|
||
- Power Supply : Voltage between 200V to 550V, 3-Phase, 50Hz or 60Hz.
- Discharge is flanged type with companion flange as standard.
- A motor protector (bimettalic auto cut) is installed for motors under 7.5kW.
- Mark * shows availability of discharge sizes, on request.
- Figures in ( ) of column "Rated Flow" for 50Hz operation.
- Weight indicates the values of free-standing type.
- Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
