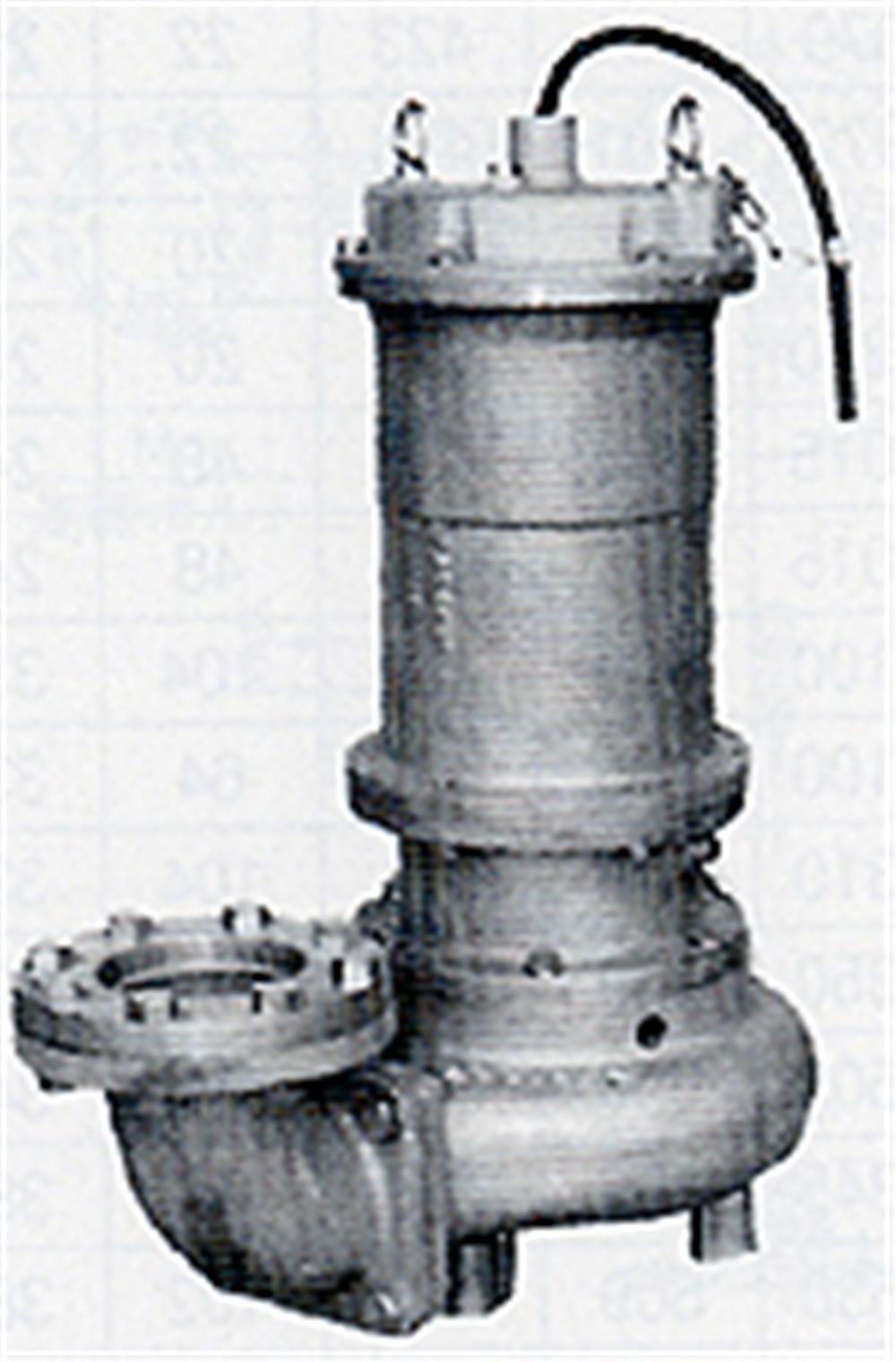

EIM - Submersible Pumps for Sumps - Model CSE: 2-pole Series (For Corrosion-Resistant Stainless Steel Type)
Submersible pumps for waste/dirty water handling internal motor cooling allows for continuous run dry operation
Features:
- All parts that come in contact with liquids are mode of stainless steel(SUS316) and casting(SCS14).
- Corrosion-resistant mechanical seal.
- Built-in motor protector.
Specifications
|
Model
|
Discharge
|
No. of Poles
|
Motor Output
|
Rated Head
|
Rated Flow
|
Solid Handing
|
Power Cable
|
Weight
|
|||||
|
Free Standing
|
Ebow Assembly
|
mm
|
inch
|
kW
|
HP
|
m
|
ft
|
m3/min
|
l/s
|
mm
|
mm2×Core×Length(m)
|
kg
|
|
|
CSE-400E
|
CSE-400B1
|
50/40*
|
2
|
2
|
0.4
|
1/2
|
6
|
20
|
0.16
|
2.7
|
12
|
1.25×3×6
|
25
|
|
CSE-400G
|
-
|
18
|
|||||||||||
|
CSE-503E
|
CSE-503B1
|
2
|
0.25
|
1/3
|
5
|
16
|
0.15
|
2.5
|
12
|
1.25×4×6
|
25
|
||
|
CSE-503G
|
-
|
18
|
|||||||||||
|
CSE-505E
|
CSE-505B1
|
2
|
0.4
|
1/2
|
6
|
20
|
0.2
|
3.3
|
12
|
1.25×4×10
|
26
|
||
|
CSE-505G
|
-
|
20
|
|||||||||||
|
CSE-51E
|
CSE-51B1
|
2
|
0.75
|
1
|
8
|
26
|
0.3
|
5.0
|
16
|
1.25×4×10
|
28
|
||
|
CSE-51G
|
-
|
22
|
|||||||||||
|
CSE-52G
|
-
|
2
|
1.5
|
2
|
15
|
49
|
0.2
|
3.3
|
13
|
2.0×4×8
|
45
|
||
|
CSE5-82HE
|
CSE5-82HBH
|
80/65*
|
3
|
2
|
1.5
|
2
|
15
|
49
|
0.25
|
4.2
|
13
|
2.0×4×8
|
48
|
|
CSE5-82LE
|
CSE5-82LBH
|
8
|
26
|
0.5(0.55)
|
8.3(9.2)
|
16
|
2.0×4×8
|
48
|
|||||
|
CSE5-83HE
|
CSE5-83HBH
|
2
|
2.2
|
3
|
20
|
66
|
0.25
|
4.2
|
15
|
2.0×4×8
|
72
|
||
|
CSE5-83LE
|
CSE5-83LBH
|
8
|
26
|
0.75(0.8)
|
12.5(13.0)
|
34
|
2.0×4×8
|
72
|
|||||
|
CSE5-85HE
|
CSE5-85HBH
|
2
|
3.7
|
5
|
20
|
66
|
0.5
|
8.3
|
18
|
2.0×4×8
|
94
|
||
|
CSE5-85LE
|
CSE5-85LBH
|
10
|
33
|
1.0(1.1)
|
16.7(18.0)
|
32
|
2.0×4×8
|
94
|
|||||
|
CSE5-88E
|
CSE5-88BH
|
80/65*
|
3
|
2
|
5.5
|
8
|
30
|
98
|
0.3
|
5.0
|
19
|
3.5×4×8
|
120
|
|
CSE5-810E
|
CSE5-810BH
|
2
|
7.5
|
10
|
35
|
115
|
0.4
|
6.7
|
20
|
5.5×4×8
|
127
|
||
|
CSE5-815ED
|
CSE5-815DBH
|
2
|
11
|
15
|
40
|
131
|
0.5
|
8.3
|
20
|
5.5×3,4×8
|
154
|
||
|
CSE5-108E
|
CSE5-108BH
|
100/80*
|
4
|
2
|
5.5
|
8
|
12
|
39
|
1.3
|
21.7
|
33
|
3.5×4×8
|
128
|
|
CSE5-1010E
|
CSE5-1010BH
|
2
|
7.5
|
10
|
15
|
49
|
1.5
|
25.0
|
33
|
5.5×4×8
|
134
|
||
|
CSE5-1015ED
|
CSE5-1015DBH
|
2
|
11
|
15
|
15
|
49
|
1.8
|
30.0
|
36
|
5.5×3,4×8
|
160
|
||
- Discharge Elbow shape : Flange type. The shape code G indicates inner threaded type.
- A motor protector (bimettalic auto cut) is installed for motors under 7.5kW.
- Mark * shows availability of discharge sizes, on request.
- Figures in ( ) of column "Rated Flow" for 50Hz operation.
- Weight indicates the values of free-standing type.
- Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
