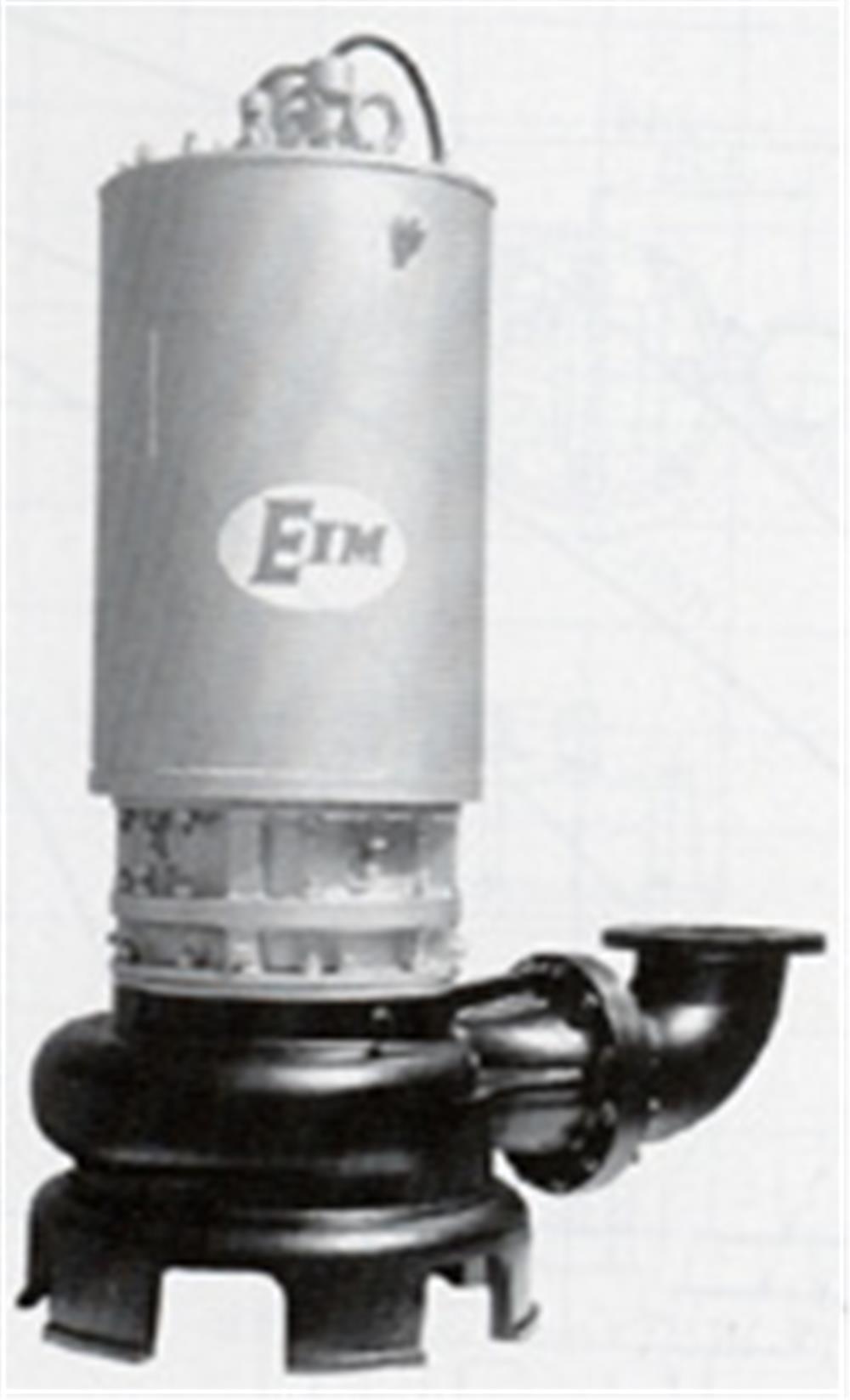

EIM - Submersible Pumps for Sumps - Model SUK (For Waste/Dirty Water Closed Loop Cooling Arrangement)
Submersible pumps for waste/dirty water handling internal motor cooling allows for continuous run dry operation
Features:
- Efficient closed loop motor cooling system allows for dry operation
- Motor cooling loop is completely isolated from pumping fluid
- Prevent protection against possible trouble
- Non-clogging centrifugal impeller are standard
- EIM also can provide the following option upon request
- Vortex impeller
- Screw centrifugal impeller
Specifications
|
Model
|
Discharge
|
No. of Poles
|
Motor Output
|
Rated Head
|
Rated Flow
|
Solid Handing
|
Power Cable
|
Weight
|
|||||
|
Free Standing
|
Ebow Assembly
|
mm
|
inch
|
kW
|
HP
|
m
|
ft
|
m3/min
|
l/s
|
mm
|
mm2×Core×Length(m)
|
kg
|
|
|
SUK-88E
|
SUK-88B
|
80/65*
|
3
|
4
|
5.5
|
8
|
20
|
66
|
0.6
|
10.0
|
29
|
3.5×4×8
|
180
|
|
SUK-810E
|
SUK-810B
|
4
|
7.5
|
10
|
25
|
82
|
0.6
|
10.0
|
29
|
5.5×4×8
|
190
|
||
|
SUK-815ED
|
SUK-815DB
|
4
|
11
|
15
|
25
|
82
|
1.0
|
16.7
|
29
|
5.5×3,4×8
|
290
|
||
|
SUK-820ED
|
SUK-820DB
|
4
|
15
|
20
|
30
|
98
|
1.2
|
20.0
|
29
|
14×3,4×8
|
300
|
||
|
SUK-108E
|
SUK-108B
|
100
|
4
|
4
|
5.5
|
8
|
10
|
33
|
1.5
|
25.0
|
34
|
3.5×4×8
|
180
|
|
SUK-1010E
|
SUK-1010B
|
4
|
7.5
|
10
|
15
|
49
|
1.5
|
25.0
|
34
|
5.5×4×8
|
190
|
||
|
SUK-158E
|
SUK-158BH
|
150
|
6
|
4
|
5.5
|
8
|
6
|
20
|
2.0
|
33.3
|
55
|
3.5×4×8
|
190
|
|
SUK-1510E
|
SUK-1510BH
|
4
|
7.5
|
10
|
10
|
33
|
2.5
|
60
|
5.5×4×8
|
200
|
|||
|
SUK-1515ED
|
SUK-1515DBH
|
4
|
11
|
15
|
15
|
49
|
2.5
|
44
|
5.5×3,4×8
|
300
|
|||
|
SUK-1520ED
|
SUK-1520DBH
|
4
|
15
|
20
|
15
|
49
|
3.0
|
50
|
44
|
14×3,4×8
|
310
|
||
|
SUK-1530ED
|
SUK-1530DB
|
4
|
22
|
30
|
20
|
66
|
3.0
|
50
|
35
|
14×3,4×8
|
670
|
||
|
SUK-2015ED
|
SUK-2015DBH
|
200
|
8
|
4
|
11
|
15
|
10
|
33
|
4.0
|
66.7
|
55
|
5.5×3,4×8
|
330
|
|
SUK-2030ED
|
SUK-2030DBH
|
4
|
22
|
30
|
15
|
49
|
5.0
|
83.3
|
55
|
14×3,4×8
|
700
|
||
|
SUK-2040ED
|
SUK-2040DBH
|
4
|
30
|
40
|
18
|
59
|
5.0
|
83.3
|
55
|
22×3,4×8
|
750
|
||
|
SUK-2050ED
|
SUK-2050DBH
|
4
|
37
|
50
|
22
|
72
|
5.0
|
83.3
|
55
|
22×3,4×8
|
750
|
||
|
SUK-2060ED
|
SUK-2060DBH
|
4
|
45
|
60
|
30
|
98
|
5.0
|
83.3
|
55
|
38×3,4×8
|
1,000
|
||
|
SUK-3050ED
|
SUK-3050DB1B
|
300
|
12
|
6
|
37
|
50
|
15
|
49
|
8.0
|
141.7
|
75
|
22×3,4×8
|
1,100
|
|
SUK-3550ED
|
SUK-3550DB1B
|
350
|
14
|
6
|
37
|
50
|
10
|
33
|
14.0
|
233.3
|
75
|
22×3,4×8
|
1,150
|
|
SUK-4060ED
|
SUK-4060DB1B
|
400
|
16
|
6
|
45
|
60
|
9.5
|
31
|
18.0
|
300
|
75
|
38×3,4×8
|
1,300
|
|
SUK-50100ED
|
SUK-50100DB1B
|
500
|
20
|
8
|
75
|
100
|
10
|
33
|
30.0
|
500
|
85
|
38×3,4×8
|
2,500
|
|
SUK-60220ED
|
SUK-60220DB1B
|
600
|
24
|
8
|
160
|
220
|
11
|
36
|
60.0
|
1,000
|
100
|
100×3,4×8
|
4,000
|
- A motor protector (bimettalic auto cut) is installed for motors under 7.5kW.
- Thermal protection for motor windings and a water penetration detector are standard equipment.
- Mark * shows availability of discharge sizes, on request.
- Weight indicates the values of free-standing type.
- Power cable : 2PNCT
