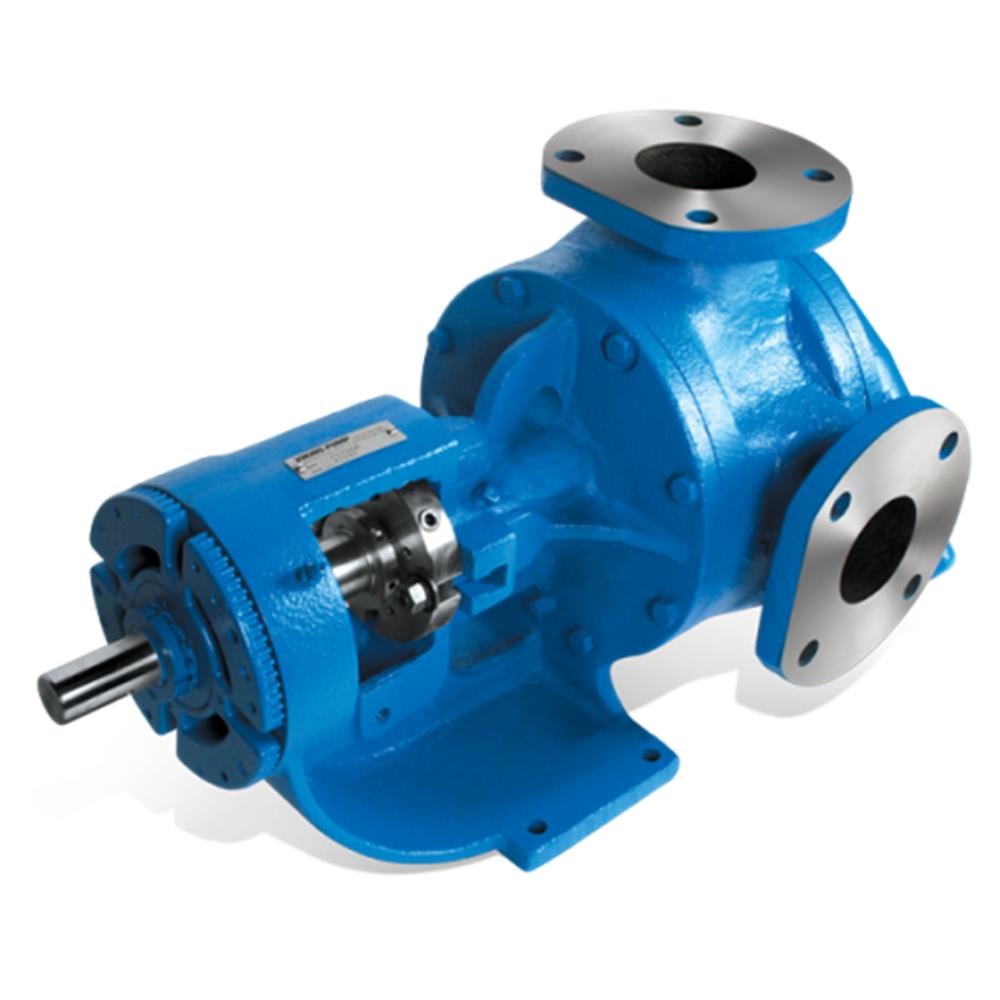

Viking - Internal Gear Pumps - Universal Seal
Series:
124A/AE, 224A/AE, 4124A/AE/B, 4224A/AE/B, 126A, 226A, 4126A, 4226A, 123A, 223A, 4123A, 4223A, 127A, 227A, 4127A, 4227A, 324A, 4324A, 323A, 4323A, 327A, 4327A
Max. Capacity: 1,600 GPM (365 M³/hr)
Max. Pressure: 200 PSI (14 BAR) (*higher pressures available w/ factory approval.)
Max. Viscosity: 2,000,000 SSU (440,000 cSt)
Temperature Range: -120°F to +800°F (-85°C to +430°C)
Features:
- Accommodates virtually all sealing types and manufacturers.
- Back pull-out seals provide access without disturbing the wet end.
- Design adaptability for an unequaled range of liquids, temperatures, and viscosities.
- Rugged design with heavy duty bearings extends pump life.
- Available with FDA and EN1935/2004 materials for food contact.
Specifications
| Materials of Construction | Size | Standard | Nominal Capacity at Maximum Speed | Maximum | Maximum Pressure | |||
| Inches | GPM | M3/Hr | RPM | PSI | BAR | |||
| CAST IRON - DUCTILE IRON - STEEL | G | 1 | 8 | 2 | 1,750 | 200 | 14 | |
| H | 1.5 | 15 | 3 | 1,750 | 200 | 14 | ||
| HL | 1.5 | 30 | 7 | 1,750 | 200 | 14 | ||
| AK | 2 | 50 | 11 | 1,150 | 200 | 14 | ||
| AL | 2 | 75 | 17 | 1,150 | 200 | 14 | ||
| K | 2 | 75 | 17 | 780 | 200 | 14 | ||
| KK | 2 | 100 | 23 | 780 | 200 | 14 | ||
| L | 2 | 135 | 31 | 640 | 200 | 14 | ||
| LQ | 2.5 | 135 | 31 | 640 | 200 | 14 | ||
| LL | 3 | 140 | 32 | 520 | 200 | 14 | ||
| LS | 3 | 200 | 45 | 640 | 200 | 14 | ||
| Q | 4 | 300 | 68 | 520 | 200 | 14 | ||
| M | ? | 4 | 420 | 95 | 420 | 200 | 14 | |
| QS | 6 | 500 | 114 | 520 | 200 | 14 | ||
| N | 6 | 600 | 138 | 350 | 200 | 14 | ||
| R | 8 | 1,100 | 250 | 280 | 200 | 14 | ||
| RS | 10 | 1,600 | 365 | 280 | 125 | 8.5 | ||
| STAINLESS STEEL | H | 1.5 | 10 | 2 | 1,150 | 150 | 10 | |
| HL | 1.5 | 20 | 5 | 1,150 | 150 | 10 | ||
| K | 2 | 50 | 11 | 520 | 150 | 10 | ||
| KK | 2 | 65 | 15 | 520 | 150 | 10 | ||
| LQ | 2.5 | 90 | 21 | 420 | 150 | 10 | ||
| LL | 3 | 110 | 25 | 420 | 150 | 10 | ||
| LS | 3 | 160 | 36 | 520 | 125 | 8.5 | ||
| Q | 4 | 200 | 45 | 350 | 125 | 8.5 | ||
| QS | 6 | 320 | 73 | 350 | 125 | 8.5 | ||
| N | 6 | 600 | 138 | 350 | 200 | 14 | ||
| R | 8 | 1,110 | 250 | 280 | 175 | 12 | ||
| RS | 10 | 1,600 | 365 | 280 | 125 | 8.5 | ||
Integral relief valve is standard on non-jacketed pumps, except RS
Not a Universal Seal bracket design. Considered Heavy Duty design
Options
Sealing / Coupling:
Packing, Component Mechanical Seals, Cartridge Mechanical Seals, Cartridge Triple Lip Seals, Sealless Mag Drive, Behind-the-Rotor Seal (Iron Only)
Porting:
Opposite (180°) (Rotatable Casing), Right Angle (90°) (Rotatable Casing), NPT/BSP, Flanged (ANSI or DIN Compatible)
Mounting:
Foot Mount
