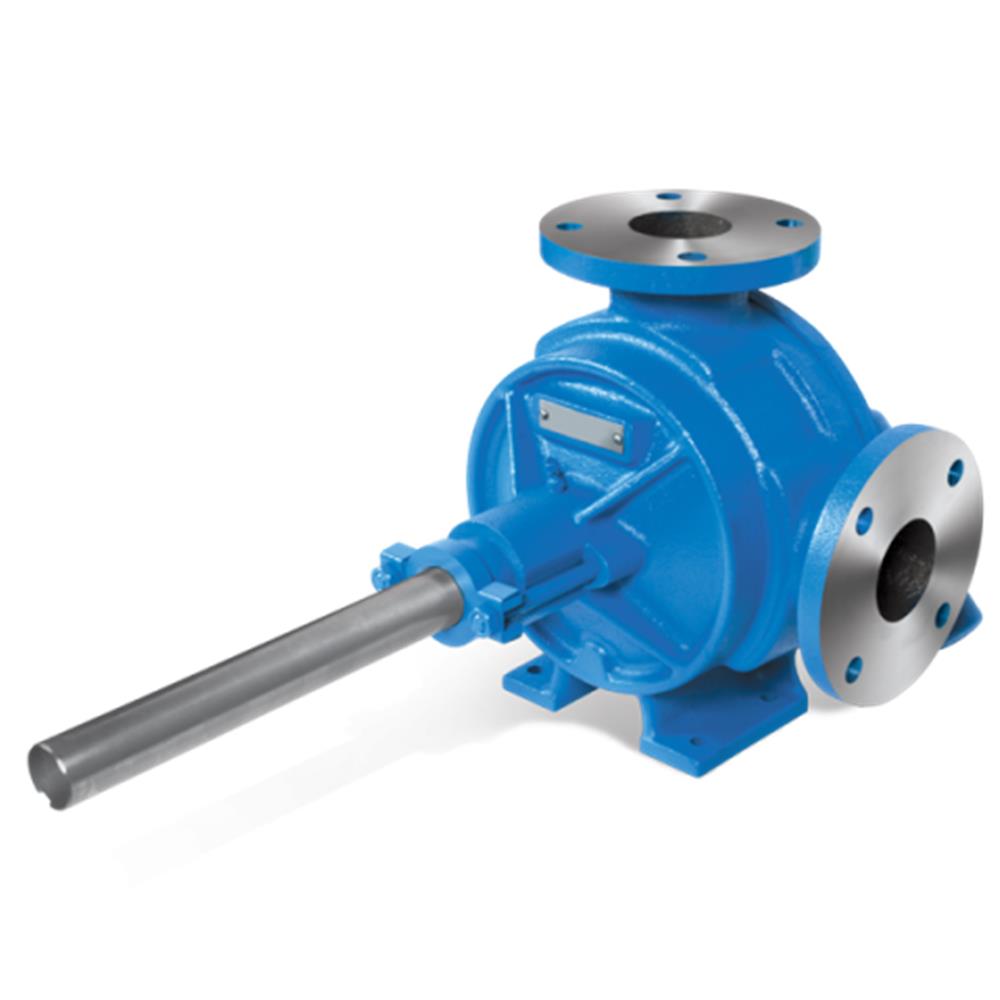

Viking - Internal Gear Pumps - General Purpose
Series:
32, 432, 432-X
Max. Capacity: 450 GPM (102 M³/hr)
Max. Pressure: 250 PSI (17 BAR)
Max. Viscosity: 250,000 SSU (55,000 cSt)
Temperature Range: -60°F to +450°F (-50°C to +232°C)
Features:
- Simplified rotor retention system, economical for medium duty applications.
- Back pull-out seals provide access without disturbing the wet end.
- Long shaft standard for pillow block and belt drive, or reducer drive.
Specifications
| Size | Standard Port | Nominal Capacity At Maximum Speed | Maximum Speed | Maximum Pressure | |||
| Inches | GPM | M3/Hr | RPM | PSI | BAR | ||
| Foot-Mounted | C | 0.25 | 0.5 | 0.11 | 1,750 | 250 | 17 |
| F | 0.5 | 1.5 | 0.34 | 1,750 | 250 | 17 | |
| FH | 0.5 | 3 | 0.68 | 1,750 | 250 | 17 | |
| G | 1 | 5 | 1.1 | 1,150 | 100 | 7 | |
| H | 1 | 10 | 2.3 | 1,150 | 100 | 7 | |
| HL | 1.5 | 20 | 4.5 | 1,150 | 100 | 7 | |
| J | 1.25 | 20 | 4.5 | 420 | 100 | 7 | |
| K | 1.5 | 35 | 8 | 420 | 100 | 7 | |
| KK | 2 | 50 | 11.4 | 420 | 100 | 7 | |
| L | 2 | 90 | 20.5 | 420 | 100 | 7 | |
| LQ | 2.5 | 90 | 20.5 | 420 | 100 | 7 | |
| LL | 3 | 140 | 32 | 520 | 100 | 7 | |
| Q | 3 | 200 | 46 | 350 | 75 | 5 | |
| M | 4 | 280 | 64 | 280 | 75 | 5 | |
| N | 5 | 450 | 102 | 280 | 75 | 5 | |
Integral pressure relief valve is standard.
C thru HL sizes available UL 343 listed for fuel oil applications
Options
Sealing / Coupling:
Packing, Component Mechanical Seal (C-HL)
Porting:
Opposite (180°), Right Angle (90°), Same Side, NPT/BSP, Flanged
Mounting:
Foot Mount
