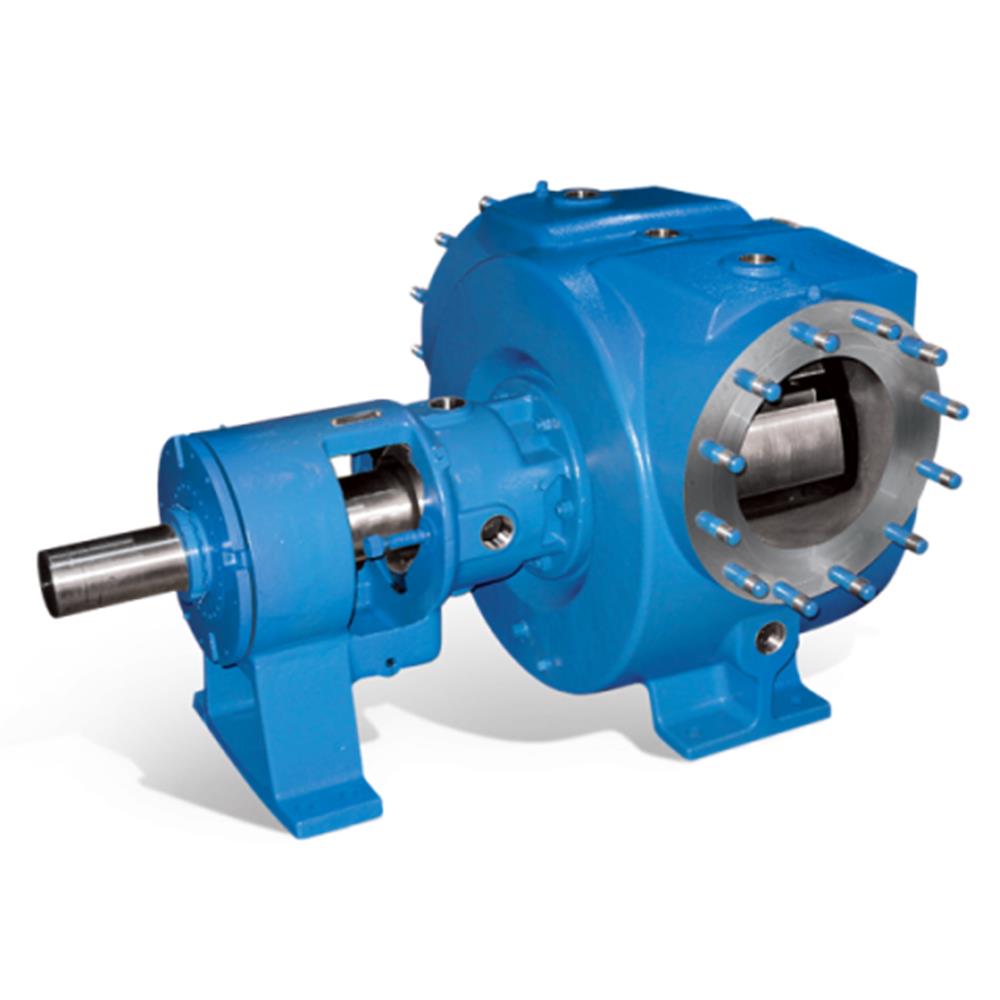

Viking - Internal Gear Pumps - Jacketed Universal Seal
Series:
224A/AE, 4224A/AE/B, 226A, 4226A, 223A, 4223A, 227A, 4227A, 324A, 4324A, 323A, 4323A, 327A, 4327A
Max. Capacity: 1,600 GPM (365 M³/hr)
Max. Pressure: 200 PSI (14 BAR)
Max. Viscosity: 2,000,000 SSU (440,000 cSt)
Temperature Range: -120°F to +800°F (-85°C to +430°C)
Features:
- Jacketing options available for all critical areas of the pump provide rapid heating for faster startup.
- Allows a variety of heating or cooling media including hot oil, steam and water.
- Variety of jacket connection options including tapped and flange.
- Fully-jacketed steel and stainless steel models offer proven uniform temperature control for improved product consistency.
- Numerous porting positions, configurations and sizes provide enhanced application flexibility
Specifications
| Materials of Construction | Size | Standard Port | Nominal Capacity At Maximum Speed | Maximum Speed | Maximum Pressure | |||
| Inches | GPM | M3/Hr | RPM | PSI | BAR | |||
| CAST IRON - DUCTILE IRON - STEEL | H | 1.5 | 15 | 3 | 1,750 | 200 | 14 | |
| HL | 1.5 | 30 | 7 | 1,750 | 200 | 14 | ||
| K | 2 | 75 | 17 | 780 | 200 | 14 | ||
| KK | 2 | 100 | 23 | 780 | 200 | 14 | ||
| L | 2 | 135 | 31 | 640 | 200 | 14 | ||
| LQ | 2.5 | 135 | 31 | 640 | 200 | 14 | ||
| LL | 3 | 140 | 32 | 520 | 200 | 14 | ||
| LS | 3 | 200 | 45 | 640 | 200 | 14 | ||
| Q | 4 | 300 | 68 | 520 | 200 | 14 | ||
| M | ? | 4 | 420 | 95 | 420 | 200 | 14 | |
| QS | 6 | 500 | 114 | 520 | 200 | 14 | ||
| N | 6 | 600 | 136 | 350 | 200 | 14 | ||
| R | 8 | 1,100 | 250 | 280 | 200 | 14 | ||
| RS | 10 | 1,600 | 365 | 280 | 125 | 8.5 | ||
| P | ? | 10 | 1,500 | 340 | 230 | 125 | 8.5 | |
| STAINLESS STEEL | H | 1.5 | 10 | 2 | 1,150 | 150 | 10 | |
| HL | 1.5 | 20 | 5 | 1,150 | 150 | 10 | ||
| K | 2 | 50 | 11 | 520 | 150 | 10 | ||
| KK | 2 | 65 | 15 | 520 | 150 | 10 | ||
| LQ | 2.5 | 90 | 21 | 420 | 150 | 10 | ||
| LL | 3 | 110 | 25 | 420 | 150 | 10 | ||
| LS | 3 | 160 | 36 | 520 | 125 | 8.5 | ||
| Q | 4 | 200 | 45 | 350 | 125 | 8.5 | ||
| M | ? | 4 | 280 | 64 | 280 | 125 | 8.5 | |
| QS | 6 | 320 | 73 | 350 | 125 | 8.5 | ||
| N | 6 | 600 | 136 | 350 | 200 | 14 | ||
| R | 8 | 1,110 | 250 | 280 | 175 | 12 | ||
| RS | 10 | 1,600 | 365 | 280 | 125 | 8.5 | ||
Not a Universal Seal bracket design. Considered Heavy Duty design
Options
Sealing / Coupling:
Packing, Component Mechanical Seals, Cartridge Mechanical Seals, Cartridge Triple Lip Seals, Sealless Mag Drive
Porting:
Opposite (180°) (Rotatable Casing), Right Angle (90°) (Rotatable Casing), NPT/BSP, Flanged (ANSI or DIN), Custom
Mounting:
Foot Mount
