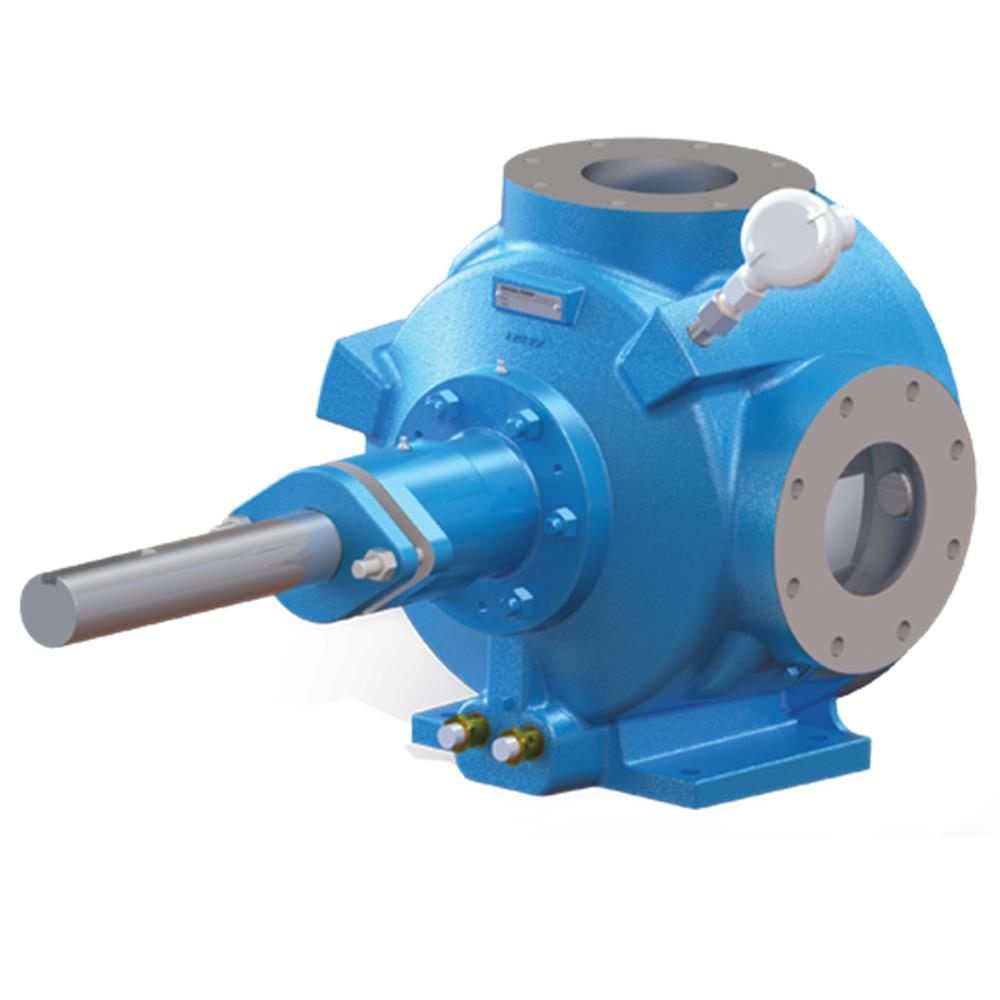

Viking - Internal Gear Pumps - Electrically Heated
Series:
124E, 324E, 32E
Max. Capacity: 685 GPM (155 M³/hr)
Max. Pressure: 200 PSI (14 BAR)
Max. Viscosity: 2,000,000 SSU (440,000 cSt)
Temperature Range: -60°F to +450°F (-50°C to +230°C)
Features:
- Lower installation costs in remote locations when steam or hot oil is not available or long piping runs are required.
- Reduced environmental costs by eliminating hot oil leaks.
- Reduced energy costs with heat source in pump vs. external heat tracing.
- Simplified service by elminating hot oil or steam pipe connections.
Specifications
| Pump Type | Pump Size | Port Size | Nominal Rating | Maximum Pressure | Total Watts | ||||
| In. | mm | GPM | M3/Hr | RPM | PSI | BAR | |||
| Heavy Duty | H124E | 1.5 | 38 | 15 | 3.4 | 1,750 | 200 | 14 | 275 |
| HL124E | 1.5 | 38 | 30 | 6.8 | 1,750 | 200 | 14 | 275 | |
| K124E | 2 | 50 | 75 | 17 | 780 | 200 | 14 | 690 | |
| KK124E | 2 | 50 | 100 | 23 | 780 | 200 | 14 | 690 | |
| L124E | 2 | 50 | 135 | 30 | 640 | 200 | 14 | 1,200 | |
| LQ124E | 2.5 | 65 | 135 | 30 | 640 | 200 | 14 | 1,200 | |
| LL124E | 3 | 75 | 140 | 32 | 520 | 200 | 14 | 1,250 | |
| LS124E | 3 | 75 | 200 | 45 | 640 | 200 | 14 | 1,250 | |
| Q124E | 4 | 100 | 300 | 68 | 520 | 200 | 14 | 2,200 | |
| QS1214E | 6 | 150 | 500 | 114 | 520 | 200 | 14 | 2,200 | |
| N324E | 6 | 150 | 600 | 136 | 350 | 200 | 14 | 2,500 | |
| *Heavy Duty (Clean Asphalt Only) | HL124E | 1.5 | 38 | 50 | 11 | 2,900 | 125 | 9 | 275 |
| K124E | 2 | 50 | 90 | 20 | 950 | 125 | 9 | 690 | |
| KK124E | 2 | 50 | 120 | 27 | 950 | 125 | 9 | 690 | |
| L124E | 2 | 50 | 210 | 48 | 950 | 125 | 9 | 1,200 | |
| LQ124E | 2.5 | 65 | 210 | 48 | 950 | 125 | 9 | 1,200 | |
| LS124E | 3 | 75 | 230 | 52 | 720 | 125 | 9 | 1,250 | |
| N324E | 6 | 150 | 685 | 155 | 420 | 125 | 9 | 2,500 | |
| General Purpose Pumps | LQ32E | 2.5 | 65 | 90 | 20 | 420 | 100 | 7 | 1,200 |
| Q32E | 3 | 75 | 200 | 45 | 350 | 75 | 5 | 1,500 | |
| M32E | 4 | 100 | 280 | 64 | 280 | 75 | 5 | 2,250 | |
| N32E | 5 | 125 | 450 | 102 | 280 | 75 | 5 | 2,500 | |
Note: Maximum temperature for standard 450°F / 232°C. Higher temperatures can be handled, consult factory.
* Higher speed / capacity available on clean asphalt only.
Options
Sealing / Coupling:
Packing
Porting:
Opposite (180°) (Rotatable Casing), Right Angle (90°) (Rotatable Casing), NPT/BSP, Flanged (ANSI or DIN)
Mounting:
Foot Mount
