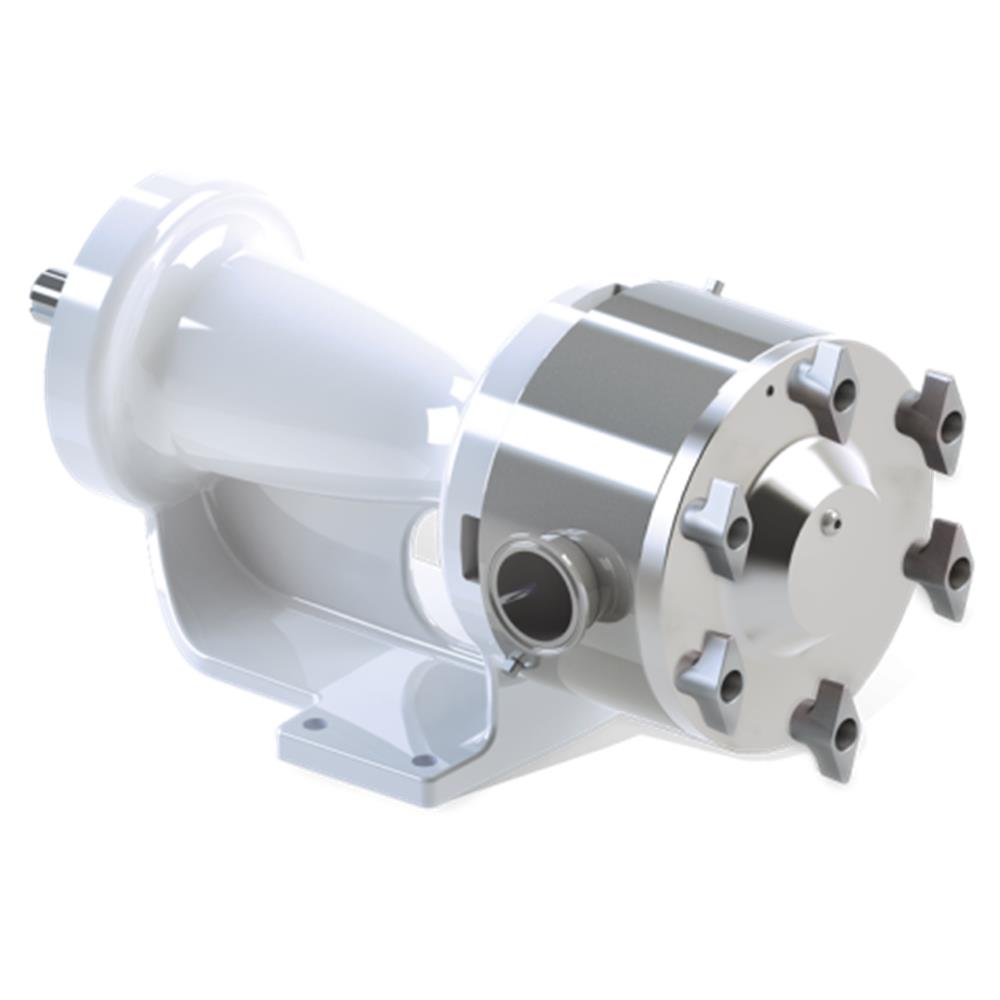

Viking - Internal Gear Pumps - Hygienic Series
Max. Capacity: 320 GPM (73 M3/Hr)
Max. Pressure: 150 PSI (10 BAR)
Max. Viscosity: 1,000,000 SSU (220,000 cSt)
Temperature Range: -5°F to +225°F (-20°C to +107°C)
Features:
- Drop-in replacement for existing Viking pumps.
- One shaft seal (mechanical or O-ring)
- Fast Clean In Place (CIP), fast Clean Out of Place (COP)
- No shimming, no rotor timing, no oil/grease changing
Specifications
|
Materials of Construction |
Size |
Standard Port |
Nominal Capacity at Maximum Speed |
Maximum Speed |
Maximum Pressure |
||
|
Inches |
GPM |
M3/Hr |
RPM |
PSI |
BAR |
||
|
STAINLESS STEEL |
H |
1 |
10 |
2.3 |
1150 |
150 |
10 |
|
HL |
1.5 |
20 |
4.5 |
1150 |
150 |
10 |
|
|
KS |
1.5 |
34 |
8 |
520 |
150 |
10 |
|
|
K |
2 |
45 |
10 |
520 |
150 |
10 |
|
|
KK |
2 |
65 |
14.7 |
520 |
150 |
10 |
|
|
LQ |
2.5 |
90 |
20 |
420 |
150 |
10 |
|
|
LL |
3 |
110 |
25 |
420 |
150 |
10 |
|
|
LS |
3 |
160 |
36 |
520 |
125 |
8.5 |
|
|
Q |
4 |
200 |
45 |
350 |
125 |
8.5 |
|
|
QS |
6 |
320 |
73 |
350 |
125 |
8.5 |
|
Options
Seals:
- Single mechanical seal standard.
- Options: double mechanical seal with flush/quench or single or double O-ring seal.
Drives:
- Long-coupled standard.
Heating/Cooling:
- Jacketing option for melting chocolate or other ambient temperature solids prior to startup.
Porting:
- Hygienic clamp ports conforming to ISO 2852 standard. Other hygienic ports and ANSI compatible flange ports optional.
- Standard and optional port sizes listed in specifications of the catalog
- Opposite ports standard, 90° ports optional.
