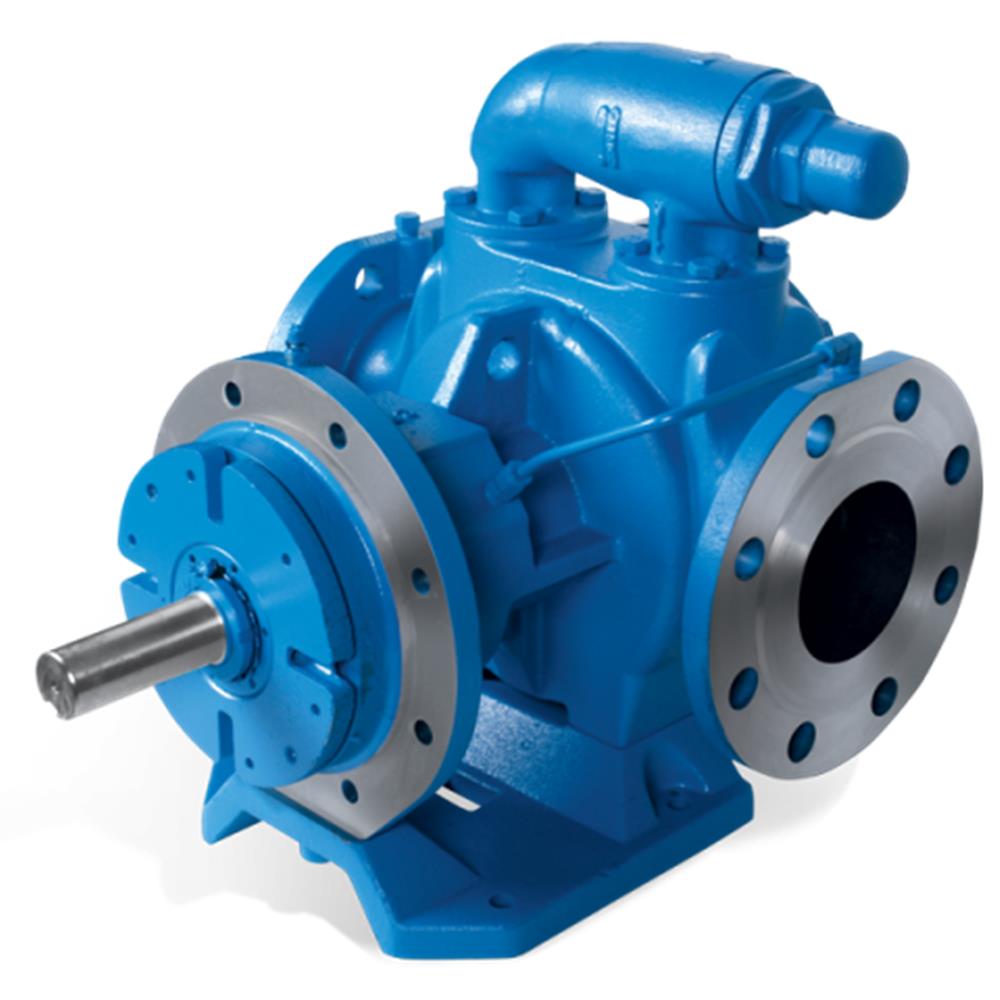

Viking - Internal Gear Pumps - Metric Motor Speed
Series:
4076, 4176
Max. Capacity: 200 GPM (45 M³/hr)
Max. Pressure: 250 PSI (17 BAR)
Max. Viscosity: 25,000 SSU (5,500 cSt)
Temperature Range: -40°F to +300°F (-40°C to +150°C)
Features:
- Motor speed operation eliminates speed reduction equipment on thinner liquids.
- Patented root feed groove and advanced gear geometry for optimized high speed operation.
- Space-saving mounting configurations available to better match your installation needs:
- Foot Mount
- IEC Motor Mount (Close-Coupled)
- DIN seal chamber accepts a wide range of seals.
Specifications
| Material of Construction | Size | Standard Port | Nominal Capacity At Maximum Speed | Maximum Speed | Maximum Pressure | ||
| mm | GPM | M3/Hr | RPM | PSI | BAR | ||
| Ductile Iron | HLE | 40 | 26 | 6 | 1,450 | 250 | 17 |
| ATE | 65 | 54 | 12 | 1,450 | 250 | 17 | |
| ALE | 65 | 94 | 21 | 1,450 | 250 | 17 | |
| KE | 80 | 126 | 29 | 1,450 | 175 | 12 | |
| KKE | 80 | 170 | 38 | 1,450 | 175 | 12 | |
| LQE | 100 | 200 | 45 | 950 | 175 | 12 | |
Integral relief valve is standard.
Options
Sealing / Coupling:
Component Mechanical Seal
Porting:
Opposite (180°), Flanged
Mounting:
Foot Mount, IEC Motor Mount (Close-Coupled)
