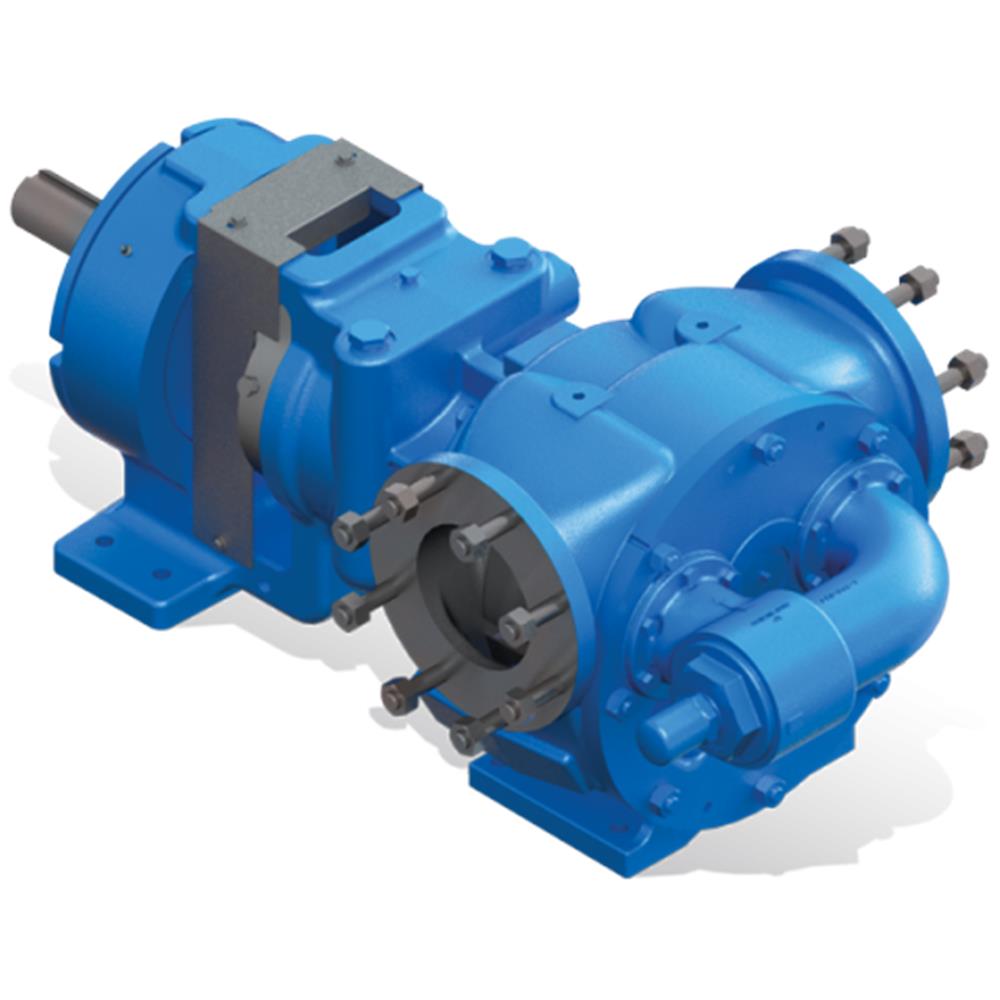

Viking - Internal Gear Pumps - Universal 682
Max. Capacity: to 1,600 GPM (364 M3/Hr)
Max. Pressure: 200 PSI (14 BAR)
Max. Viscosity: to 2,000,000 SSU (440,000 cSt)
Temperature Range: -20°F to +400°F (-29°C to +205°C)
Features:
Universal 682 Series (models 4223AA/4323AA)
Steel or stainless steel pumps with 4-bolt mount API 682 cartridge seals, but with exceptions to the standard.
Universal Seal Series (models 4223A/4323A)
Steel or stainless steel pumps with 2-bolt mount cartridge seals, with exceptions to the standard.
Specifications
| Model Number | Standard Port | Nominal Capacity at Maximum Speed | Maximum Speed | Maximum Differential Pressure | ||
| Inches | GPM | M3/Hr | RPM | PSIG | BAR | |
| H4223AA | 1 ½ | 15 | 3.4 | 1750 | 200 | 14 |
| HL4223AA | 1 ½ | 30 | 6.8 | 1750 | 200 | 14 |
| K4223AA | 2 | 80 | 18 | 780 | 200 | 14 |
| KK4223AA | 2 | 100 | 23 | 780 | 200 | 14 |
| LQ4223AA | 2 ½ | 135 | 31 | 640 | 200 | 14 |
| LL4223AA | 3 | 140 | 32 | 520 | 200 | 14 |
| LS4223AA | 3 | 200 | 45 | 640 | 200 | 14 |
| Q4223AA | 4 | 300 | 68 | 520 | 200 | 14 |
| QS4223AA | 6 | 500 | 114 | 520 | 200 | 14 |
| N4323AA | 6 | 600 | 136 | 350 | 200 | 14 |
| R4323AA | 8 | 1100 | 250 | 280 | 200 | 14 |
| RS4323AA | 10 | 1600 | 364 | 280 | 125 | 8.5 |
